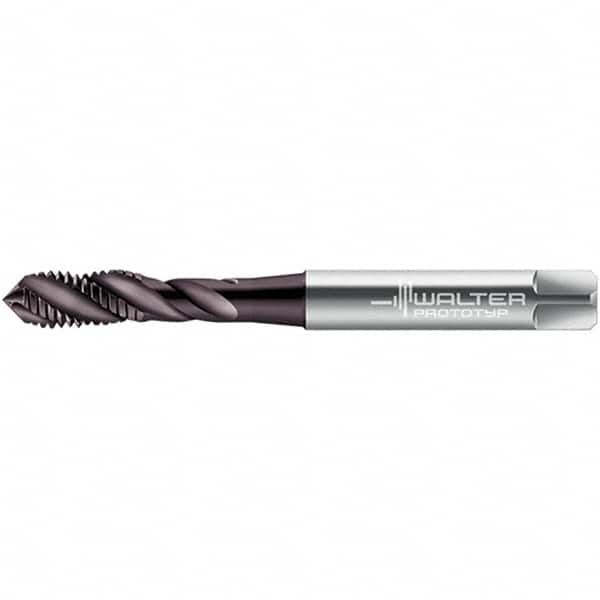

Walter-Prototyp - #5-40 UNC 3 Flute 2B Semi-Bottoming Spiral Flute Tap - High Speed Steel, Hardlube Finish, 56mm OAL, Right Hand Flute, Right Hand Thread
Item #: 95981494
Brand: Walter-Prototyp
Model #: 7569311
Exact Tooling IR#: 04
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Hardlube is a multi-layered coating composed of titanium aluminum nitride and tungsten carbide/carbon (TiAIN/WC/C). It is stronger and more wear resistant than TIAlN. It is commonly used on steel, stainless steel, nickel and cobalt.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #5-40 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 2B |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | Hardlube |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 56.00 |
| Thread Standard | UNC |
| Shank Diameter (mm) | 3.58 |
