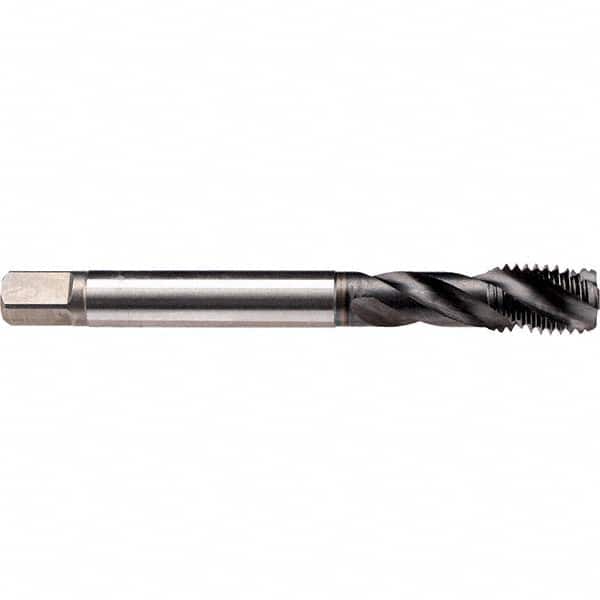

Spiral Flute Tap: 5/8-18, UNF, 2 Flute, Modified Bottoming, 2B Class of Fit, Cobalt, GLT-8 Finish 0.866″ Thread Length, 3.937″ OAL, Right Hand Flute, Right Hand Thread, H6, Series CU50S800
Item #: 95985941
Brand: Emuge
Model #: CU50S800.5049
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-8 |
| Thread Size (Inch - 0 Decimals) | 5/8-18 |
| Thread Standard | UNF |
| Thread Limit | H6 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.8660 |
| Overall Length (Decimal Inch) | 3.9370 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Size (Decimal Inch) | 0.3600 |
| Flute Style | Fast |
| Material Application | Non-Ferrous Metal |
| Series | CU50S800 |
| Coolant Through | No |
| Teeth per Inch | 18 |
| Number Of Flutes | 2 |
| Class Of Fit | 2B |
