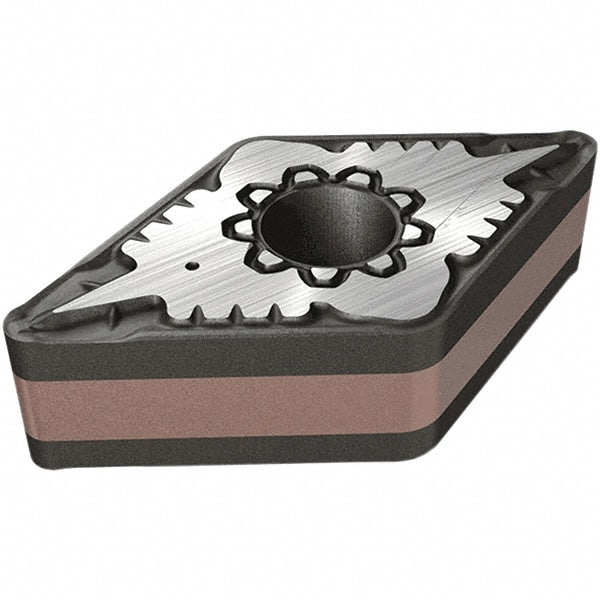

Turning Insert: DNMG 431-F3M IC6025, Carbide
Item #: 57442204
Brand: Iscar
Model #: 5567866
Product Specifications
| ANSI Insert Code | DNMG431 |
| ISO Insert Code | DNMG150404 |
| Insert Style | DNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | IC6025 |
| Coating/Finish | TiCN; TiN; AI2O3 |
| Series | Isoturn |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to High Toughness |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | F3M |
| ANSI Size Code | 431 |
| ISO Size Code | 150404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
| ANSI Insert Code | DNMG431 |
| ISO Insert Code | DNMG150404 |
| Insert Style | DNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | IC6025 |
| Coating/Finish | TiCN; TiN; AI2O3 |
| Series | Isoturn |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to High Toughness |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | F3M |
| ANSI Size Code | 431 |
| ISO Size Code | 150404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
| MSC Part # | 57442204 |
| Mfr Part # | 5567866 |
| Country of Origin Country of Origin is subject to change | Israel |
