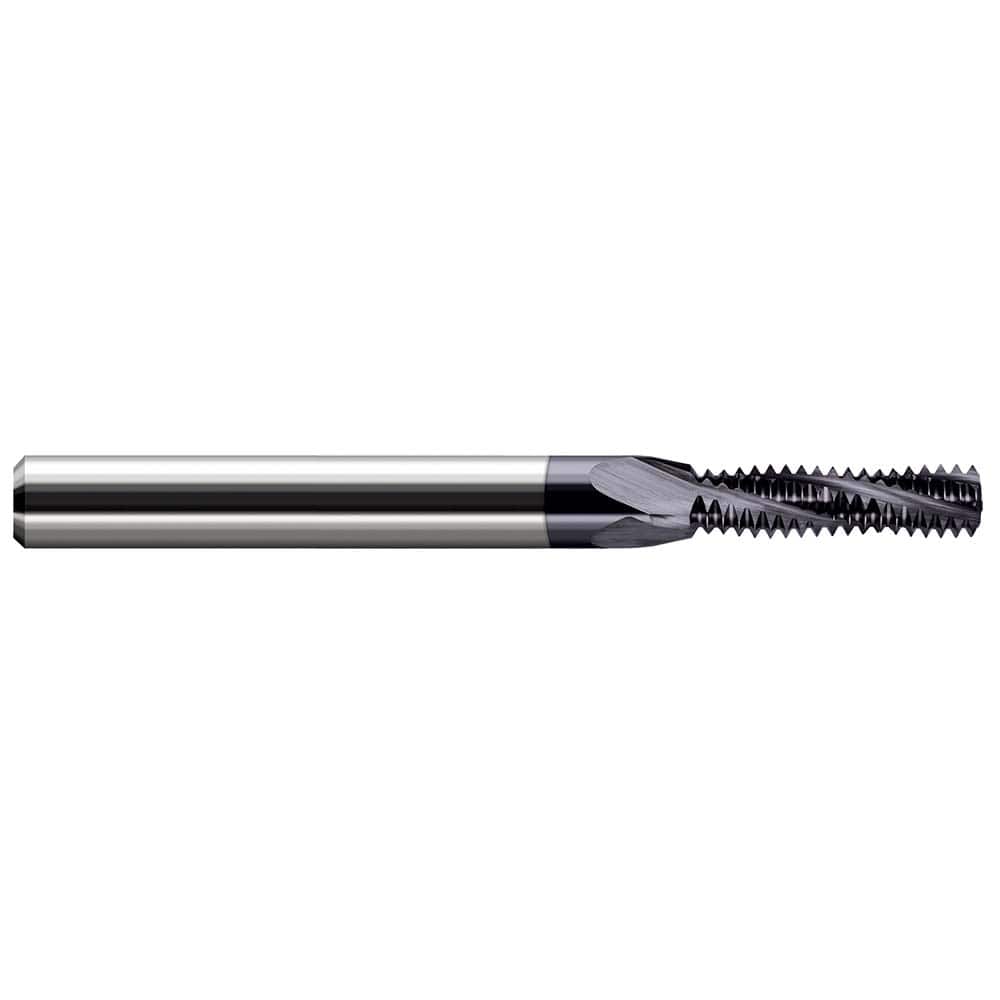

Harvey Tool - 3-48 Internal 48 TPI 1/8" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 96063516
Brand: Harvey Tool
Model #: 987112-C3
Product Specifications
| Threads Per Inch | 48 |
| Material | Solid Carbide |
| Thread Size (Inch) | 3-48 |
| Thread Type | Internal |
| Shank Diameter (Inch) | 1/8 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.0790 |
| Cutting Diameter (mm) | 2.00 |
| Length of Cut (Decimal Inch) | 0.2500 |
| Length of Cut (Inch) | 1/4 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | #3 |
| Minimum Nominal Diameter (Decimal Inch) | 0.0990 |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
