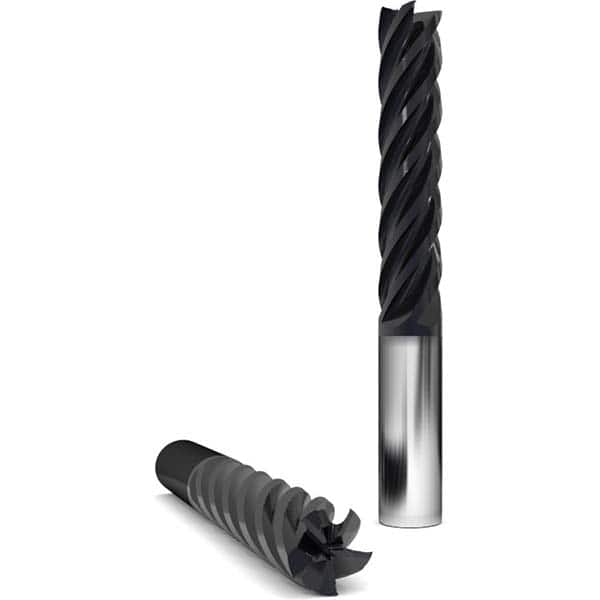

Corner Radius End Mill: 3/4″ Dia, 2-1/4″ LOC, 1/4″ Radius, 5 Flutes, Solid Carbide 5″ OAL, 3/4″ Shank Dia, 38 ° Helix, AlCr Coated, Corner Radius End, Series 2205
Item #: 96109368
Brand: GWS
Model #: 311814
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (mm) | 19.05 |
| Length of Cut (Inch) | 2-1/4 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Length of Cut (mm) | 57.15 |
| Corner Radius (Inch) | 1/4 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Straight |
| Helix Angle | 38 |
| Shank Type | Standard |
| Shank Diameter (Inch) | 0.75 |
| Overall Length (Inch) | 5 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 2205 |
| Coating Classification | Uncoated |
| Single Or Double End | Single |
| Coating/Finish | AlCr |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
