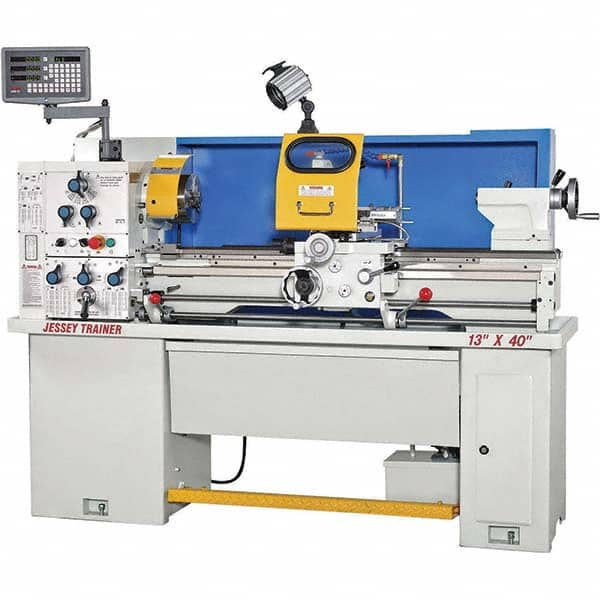

Toolroom Lathe: 13″ Swing, 40″, Geared Head D1-8, 40 to 2,500 RPM, 3 Phase, 460V, 3 hp
Item #: 96239207
Brand: Vectrax
Model #: TRA036-460
Product Specifications
| Horsepower | 3.00 |
| Phase | 3 |
| Spindle Speed Control | Geared Head |
| Bed Width (Inch) | 7.3000 |
| Bed Width | 7.3 in; 7.3000 in |
| Distance Between Centers (Inch) | 40 |
| Distance Between Centers | 40 in |
| Cross Slide Travel | 5.7 in; 5.7000 in |
| Gap Length (Decimal Inch) | 6.0000 |
| Gap Length | 6.0 in |
| Swing | 13 in |
| Cross Slide Travel (Decimal Inch) | 5.7000 |
| Spindle Bore Diameter | 35.0 mm; 1.3700 in |
| Swing (Inch) | 13 |
| Spindle Bore Diameter (Inch) | 1.3700 |
| Spindle Bore Diameter (mm) | 35.00 |
| Minimum Spindle Speed | 40 |
| Spindle Nose Designation | D1-8 |
| Voltage | 460 |
| Maximum Spindle Speed | 2500 |
| Overall Height | 62.2 in; 62.2000 in |
| Overall Depth | 41.73 in; 41.7300 in |
| Minimum Metric Pitch (Decimal Inch) | 0.2000 |
| Maximum Metric Pitch (Decimal Inch) | 14.0000 |
| Number of Inch Threads | 47 |
| Minimum Metric Pitch | 0.2 in |
| Maximum Metric Pitch | 14.0 in |
| Number of Metric Threads | 44 |
| Spindle Taper Size (No Sleeve) | 4MT |
| Spindle Taper Size (Sleeve) | 3MT |
| Spindle Taper Size | 4MT |
| Tailstock Taper Size | 3MT |
| Tailstock Travel (Decimal Inch) | 4.0000 |
| Tailstock Travel (mm) | 100.00 |
| Top Slide Travel (Decimal Inch) | 3.7500 |
| Compound Travel | 3-3/4 |
| Minimum Threads Per Inch | 4 |
| Tailstock Travel | 4.0 in; 100.0 mm |
| Number of Spindle Speeds | 2 |
| Maximum Threads Per Inch | 144 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0008 |
| Overall Height (Decimal Inch) | 62.2000 |
| Overall Depth (Inch) | 41.7300 |
| Overall Length (Decimal Inch) | 76.3800 |
| Minimum Longitudinal Feed Per Revolution | 0.0008 in |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0410 |
| Maximum Longitudinal Feed Per Revolution | 0.041 in |
| Minimum Cross Feed Rate Per Revolution (mm) | 0.0000 |
| Minimum Cross Feed Rate Per Revolution | 0.00002 in |
| Min. Cross Feed Rate Per Revolution (Decimal Inch) | 0.000020 |
| Maximum Cross Feed Rate Per Revolution (mm) | 145.00 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 0.0136 |
| Maximum Cross Feed Rate Per Revolution | 145.0 mm; 0.0136 in |
| Swing Over Cross Slide (Decimal Inch) | 7.5000 |
| Swing Over Cross Slide (Inch) | 7-1/2 |
| Swing Over Cross Slide | 7.5 in |
| Swing Over Gap (Inch) | 20 |
| Swing Over Gap (Decimal Inch) | 20.0000 |
| Swing Over Gap | 20 in; 20.0 in |
| Number Of Spindle Speeds | 2 |
| Machine Type | Engine Lathe |
| Maximum Carriage Distance (Inch) | 6 |
| Shipping Weight | 1584 |
| Warranty | 1 Year |
 | |
| MSC Part # | 96239207 |
| Mfr Part # | TRA036-460 |
