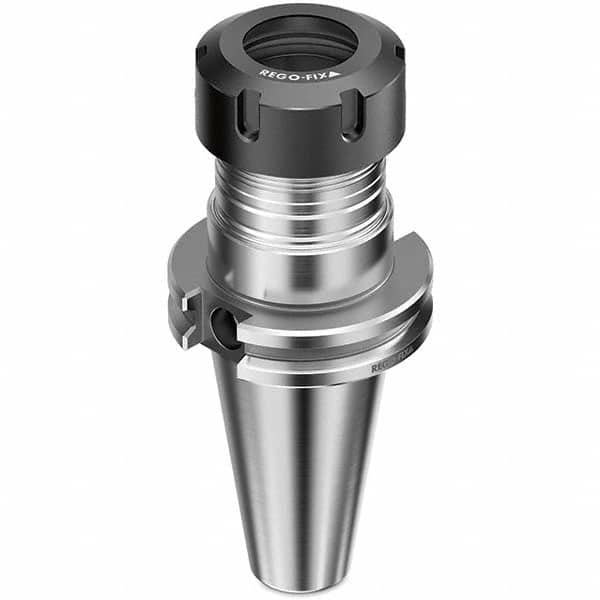

Collet Chuck: 3 to 26 mm Capacity, ER Collet, Taper Shank 6″ Projection, 0.0001″ TIR, Balanced to 25,000 RPM, Through Coolant
Item #: 96306931
Brand: Rego-Fix
Model #: 4350.14071
Product Specifications
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Taper |
| Taper Size | CAT50 |
| Projection (Decimal Inch - 4 Decimals) | 6.0000 |
| Projection (Inch) | 6 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 3.00 |
| Maximum Collet Capacity (mm) | 26.00 |
| Actuator Type | Wrench |
| Nose Diameter (Mm) ( - 2 Decimals) | 63.00 |
| Maximum RPM | 25000 |
| TIR (mm) | 0.0030 |
| TIR (mum) | 3.00 |
| TIR (Decimal Inch) | 0.000100 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (mm) | 63.00 |
| Type | ER Collet |
| Additional Information | With Hi-Q Nut |
| Locknut Diameter (Decimal Inch) | 2.4822 |
