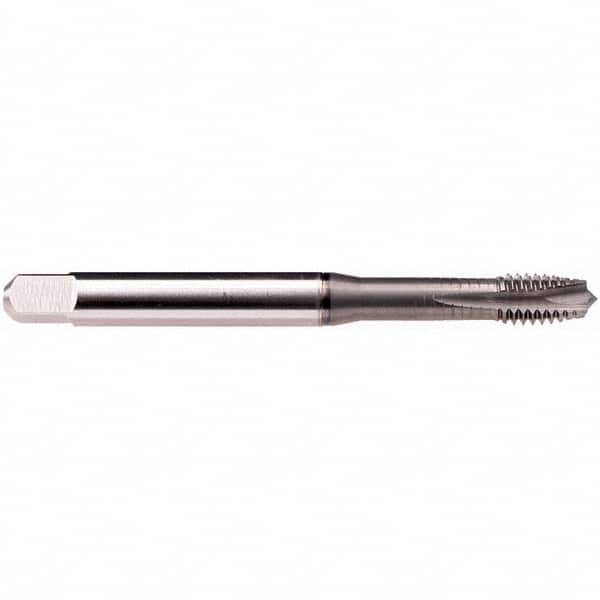

Emuge - M5x0.50 Metric Fine 6HX 3 Flute GLT-1 Finish PM Cobalt Spiral Point Tap
Item #: 96374210
Brand: Emuge
Model #: B020A601.0218
Product Specifications
| Thread Size (mm) | M5x0.50 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6HX |
| Thread Limit | D4 |
| Finish/Coating | GLT-1 |
| Material | PM Cobalt |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (mm) | 70.00 |
| Oversize | No |
| Thread Standard | Metric Fine ;MF |
| Neck Length (Decimal Inch) | 0.9843 |
| Neck Length (Inch) | 0.9843 |
| Tapping Depth (mm) | 15.00 |
| Shank Diameter (mm) | 6.00 |
| Square Size (mm) | 4.90 |
| Material Application | Stainless Steel; Steel |
| Material Application2 | Stainless Steel; Steel |
