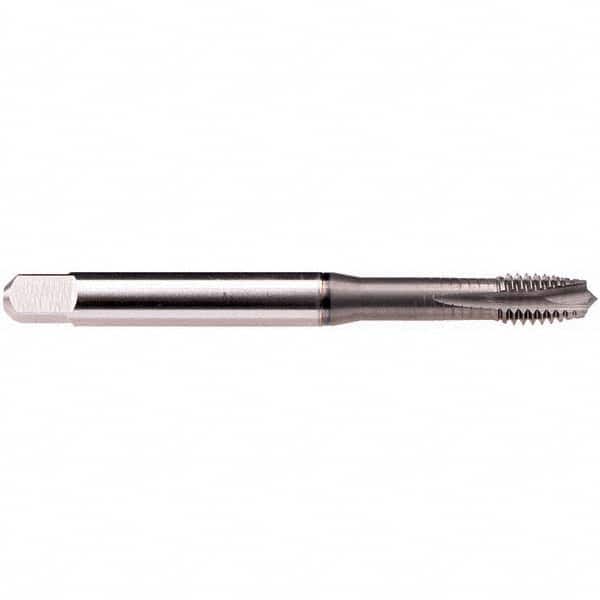

Emuge - 1/4-20 UNC 2BX 3 Flute GLT-1 Finish PM Cobalt Spiral Point Tap
Item #: 96378112
Brand: Emuge
Model #: BU20A601.5009
Product Specifications
| Thread Size (Inch) | 1/4-20 |
| Number of Flutes | 3 |
| Chamfer | 4P - 4.5P |
| Class of Fit | 2BX |
| Thread Limit | H5 |
| Finish/Coating | GLT-1 |
| Material | PM Cobalt |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 80.00 |
| Oversize | No |
| Thread Standard | UNC |
| Series/List | BU20A601 |
| Neck Length (Decimal Inch) | 1.1811 |
| Style | Spiral Point |
| Tapping Depth (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Size (Decimal Inch) | 0.1910 |
| Material Application | Stainless Steel; Steel |
| Material Application2 | Stainless Steel; Steel |
