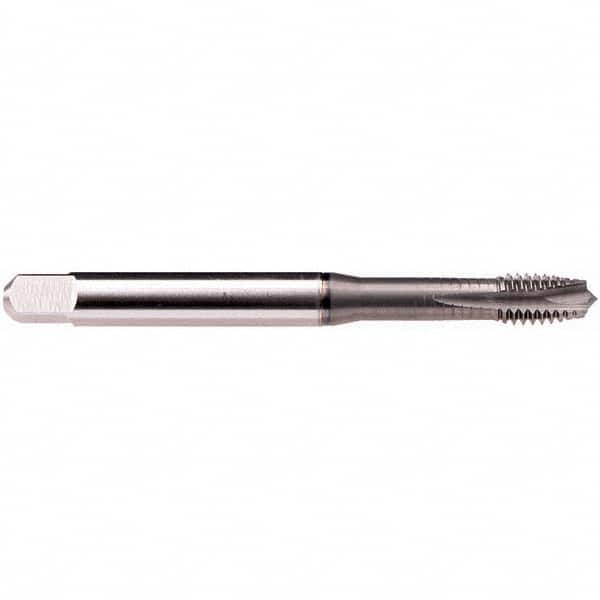

Emuge - 3/8-24 UNF 2BX 4 Flute GLT-1 Finish HSS-E Spiral Point Tap
Item #: 96391750
Brand: Emuge
Model #: BU20A601.5045
Product Specifications
| Thread Size (Inch) | 3/8-24 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 2BX |
| Thread Limit | H4 |
| Finish/Coating | GLT-1 |
| Material | HSS-E |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Oversize | No |
| Thread Standard | UNF |
| Series/List | BU20A601 |
| Neck Length (Decimal Inch) | 1.5354 |
| Style | Spiral Point |
| Tapping Depth (Inch) | 1-1/8 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Size (Decimal Inch) | 0.2860 |
| Material Application | Stainless Steel; Steel |
| Material Application2 | Stainless Steel; Steel |
