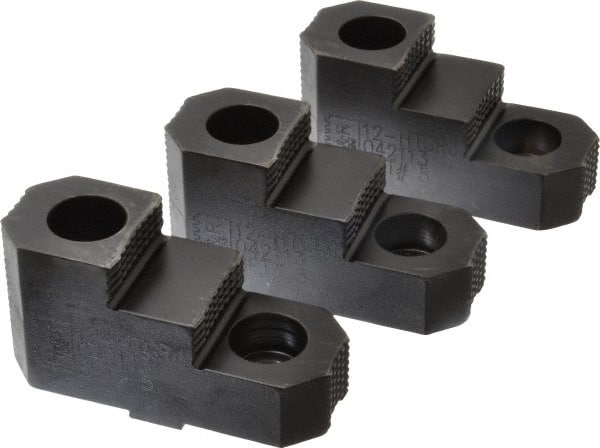

H & R Manufacturing - 12" Max Chuck Diam Compatibility, Mild Carburized Steel Tongue & Groove Hard Lathe Top Jaws - 2 Steps, 1/2" Groove Width, 1-3/4" Wide x 4.55" Long x 2-15/32" High
Item #: 96404355
Brand: H & R Manufacturing
Model #: HR-12 HTGRJ
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 12 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 12.00 |
| Number of Steps | 2 |
| Material | Mild Carburized Steel |
| Overall Width/Diameter (Inch) | 1-3/4 |
| Overall Length (Decimal Inch) | 4.5500 |
| Minimum Compatible Chuck Diameter (Inch) | 12 |
| Groove Width (Decimal Inch) | 0.5000 |
| Number of Jaws | 3 |
| Overall Height (Decimal Inch) | 2.4690 |
| Fastener Size (Inch) | 5/8 |
| Distance Between Mount Hole Centers (Decimal Inch) | 2.5000 |
