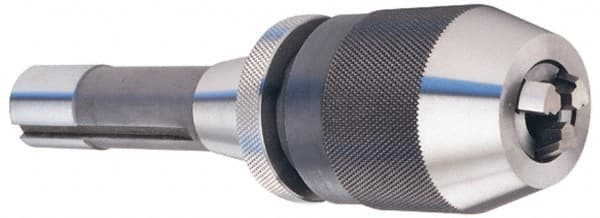

Albrecht - 4MT, 1/8 to 5/8" Capacity, Steel Integral Shank Drill Chuck - Keyless, Taper Shank, 2-1/4" Sleeve Diam, 3-9/16" Open Length
Item #: 96421110
Brand: Albrecht
Model #: 73080
Exact Tooling IR#: 04
Features and Benefits
Integral shank drill chucks are designed with the arbor (shank) built into the drill chuck, providing greater rigidity and concentricity than a press-fit tapered mount.
Keyless chucks are engineered to quickly loosen and tighten a tool on the chuck collar of the drill, either by manual operation or when torque is applied. Rotating the chuck collar in a counterclockwise direction will loosen the tool.
Ball bearings are designed to reduce friction in the tightening mechanism and provide a better grip on the drill. They are used for heavy-duty machining and require a key for tightening or loosening.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 16.00 |
| Maximum Drill Chuck Capacity (Inch) | 5/8 |
| Minimum Drill Chuck Capacity (mm) | 3.00 |
| Minimum Drill Chuck Capacity (Inch) | 1/8 |
| Mount Type | Integral Shank |
| Mounting Size | 4MT |
| Key Style | Keyless |
| Bearing Type | Ball Bearing |
| Material | Steel |
| Maximum RPM | 4000 |
| Closed Length (Inch) | 4-1/16 |
| Shank Type | Taper Shank |
| Open Length (Inch) | 3-9/16 |
| Sleeve Diameter (Inch) | 2-1/4 |
