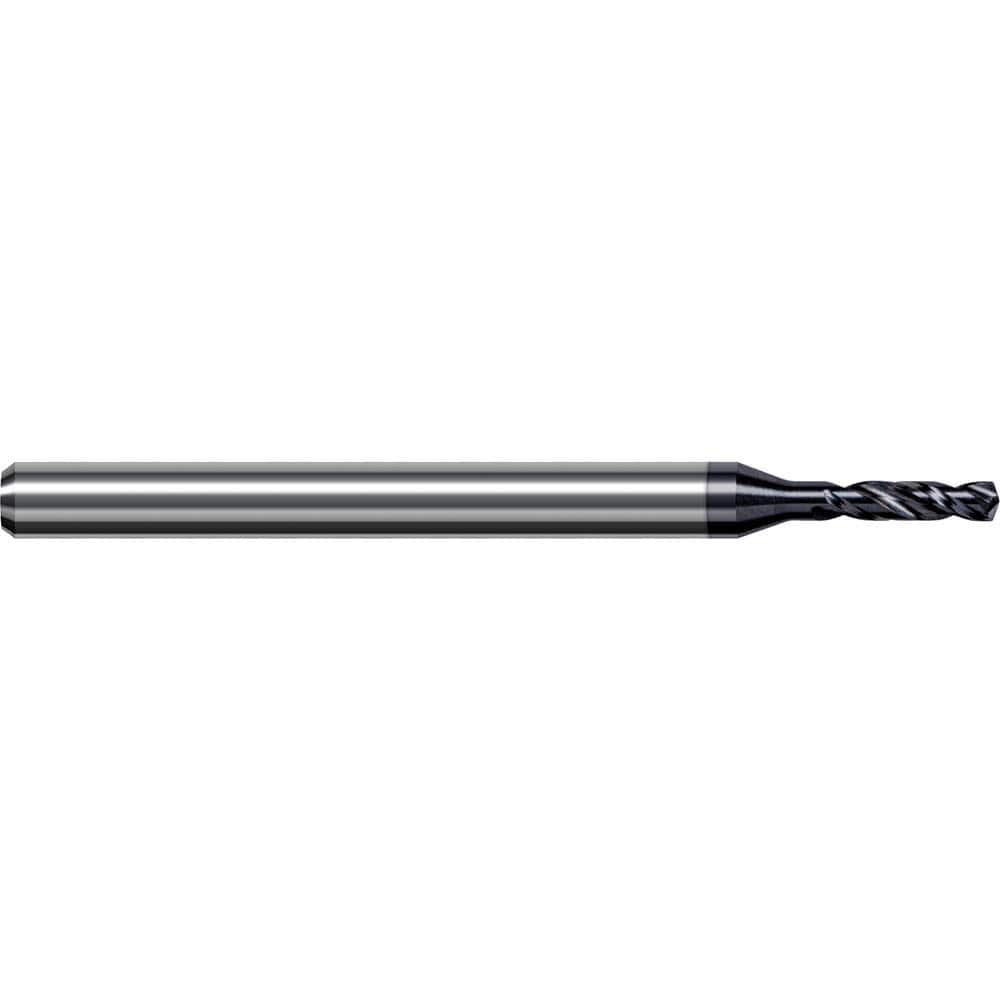

Harvey Tool - #22 140° Solid Carbide Jobber Drill
Item #: 96458724
Brand: Harvey Tool
Model #: CSG1570-C6
Product Specifications
| Drill Bit Size (Wire) | #22 |
| Drill Bit Size (Decimal Inch) | 0.1570 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | AlTiN Nano |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 19.00 |
| Flute Length (Decimal Inch) | 0.7480 |
| Overall Length (mm) | 63.0000 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 6.0000 |
| Drill Bit Diameter Tolerance (mm) | h6 |
| Number of Flutes | 2 |
| Series/List | Miniature High Performance Drills - Hardened Steels |
