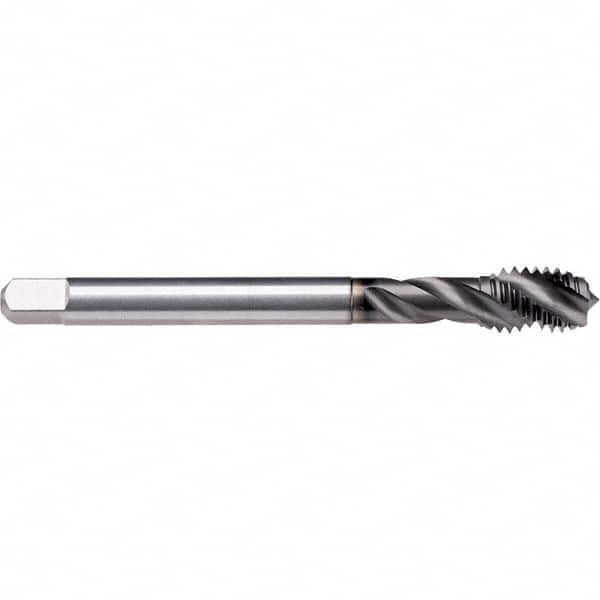

Spiral Flute Tap: 1-1/4-7, UNC, 4 Flute, Modified Bottoming, 2B Class of Fit, Cobalt, GLT-1 Finish 1.575″ Thread Length, 7.087″ OAL, Right Hand Flute, Right Hand Thread, H8, Series CU50C300
Item #: 96582085
Brand: Emuge
Model #: CU50C300.5020
Product Specifications
| Material | Cobalt |
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | 1-1/4-7 |
| Thread Standard | UNC |
| Thread Limit | H8 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.5750 |
| Overall Length (Decimal Inch) | 7.0870 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 35 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 1.0210 |
| Square Size (Decimal Inch) | 0.7660 |
| Flute Style | Fast |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | CU50C300 |
| Coolant Through | No |
| Teeth per Inch | 7 |
| Number Of Flutes | 4 |
| Class Of Fit | 2B |
