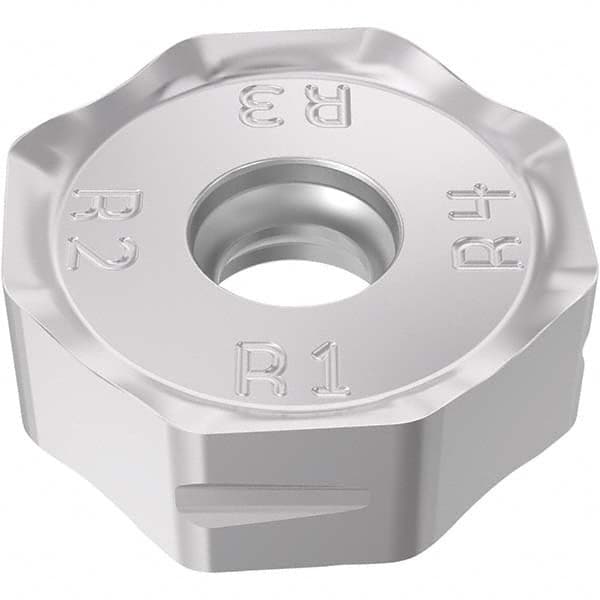

ONEU090520ZZTN4-M12 Carbide Milling Insert TiCN/Al2O3 Finish, 27/32″ Long x 0.2677″ Thick
Item #: 96591169
Brand: Seco
Model #: 03273047
Product Specifications
| Insert Style | ONEU |
| Insert Size | 090520 |
| Insert Material | Solid Carbide |
| Material Grade | Fine Grain |
| Manufacturer Grade | MP1501 |
| Length (Inch) | 27/32 |
| Inscribed Circle (Inch) | 27/32 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Coating Process | CVD |
| Rake | Negative |
| Rake Angle | 20.00 |
| Chip Breaker | M12 |
| Shape | Octagon |
| Coating/Finish | TiCN; Al2O3 |
| Included Angle Degree | 135 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2677 |
