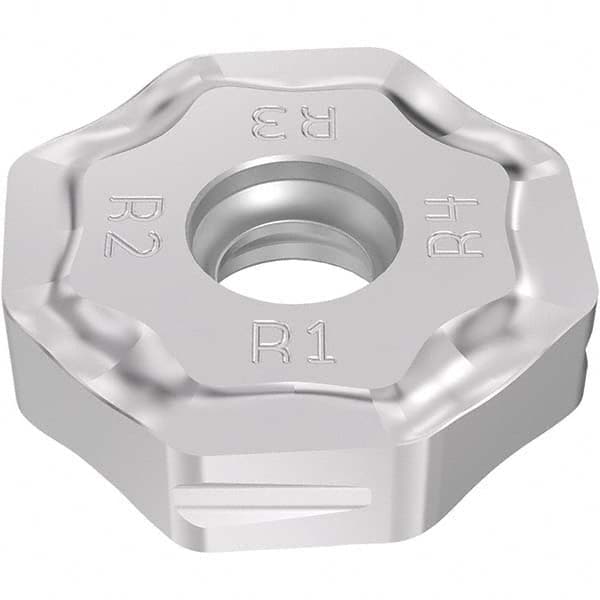

ONEU090520ZZTN4-M14 Carbide Milling Insert TiCN/Al2O3 Finish, 27/32″ Long x 0.2283″ Thick
Item #: 96591433
Brand: Seco
Model #: 03273046
Product Specifications
| Insert Style | ONEU |
| Insert Size | 090520 |
| Insert Material | Solid Carbide |
| Material Grade | Fine Grain |
| Manufacturer Grade | MP1501 |
| Length (Inch) | 27/32 |
| Inscribed Circle (Inch) | 27/32 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Coating Process | CVD |
| Rake | Negative |
| Rake Angle | 15.00 |
| Chip Breaker | M14 |
| Shape | Octagon |
| Coating/Finish | TiCN; Al2O3 |
| Included Angle Degree | 135 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2283 |
