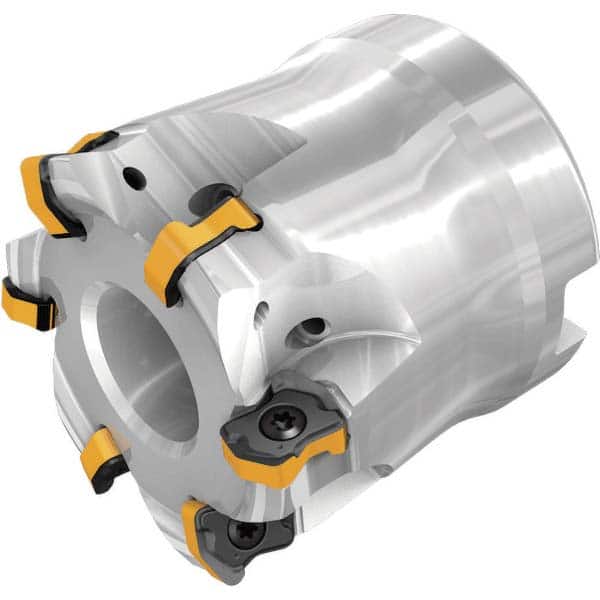

Iscar - Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 1.5000 ; Maximum Depth of Cut (Decimal Inch): 0.0314 ; Arbor Hole Diameter (Decimal Inch): 0.5000 ; Overall Height (Inch): 1-1/2 ; Series: FFX4 ; Cutter Style: FFX4
Item #: 96785175
Brand: Iscar
Model #: 3336702
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 1.5000 ; Maximum Depth of Cut (Decimal Inch): 0.0314 ; Arbor Hole Diameter (Decimal Inch): 0.5000 ; Overall Height (Inch): 1-1/2 ; Series: FFX4 ; Cutter Style: FFX4
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0314 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Overall Height (Inch) | 1-1/2 |
| Series | FFX4 |
| Cutter Style | FFX4 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | FFX4 XNMU 040310 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8000 |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 1.4170 |
| Maximum Body Diameter (mm) | 36.00 |
| Through Coolant | Yes |
