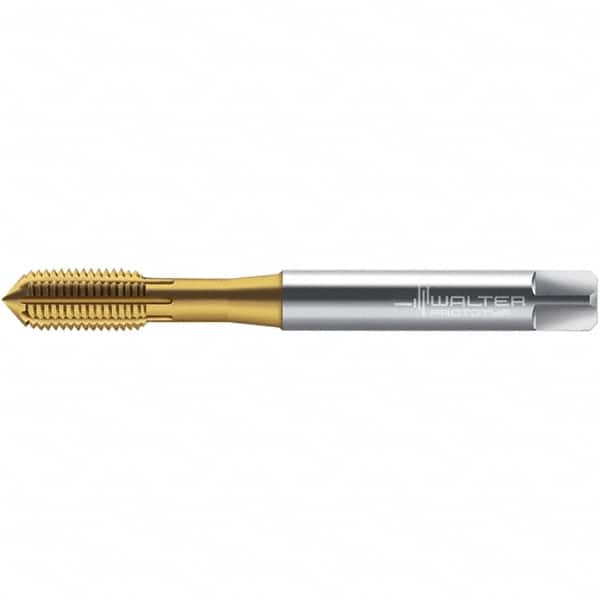

Walter-Prototyp - M2.5x0.45 DIN 2174 6GX 2.290 Thread Limit Bottoming Thread Forming Tap - Powdered Metal High Speed Steel, TiN Finish, 51.16mm OAL, 4mm Thread Length, Right Hand Thread, Series TC420
Item #: 96798111
Brand: Walter-Prototyp
Model #: 7427419
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M2.5x0.45 |
| Class of Fit | 6GX |
| Thread Limit | 2.290 |
| Chamfer | Bottoming |
| Finish/Coating | TiN |
| Material | Powdered Metal High Speed Steel |
| Overall Length (mm) | 51.16 |
| Thread Standard | DIN 2174 |
| Thread Length (mm) | 4.00 |
| Series/List | TC420 |
| Thread Direction | Right Hand |
| Shank Diameter (mm) | 2.80 |
| Through Coolant | No |
