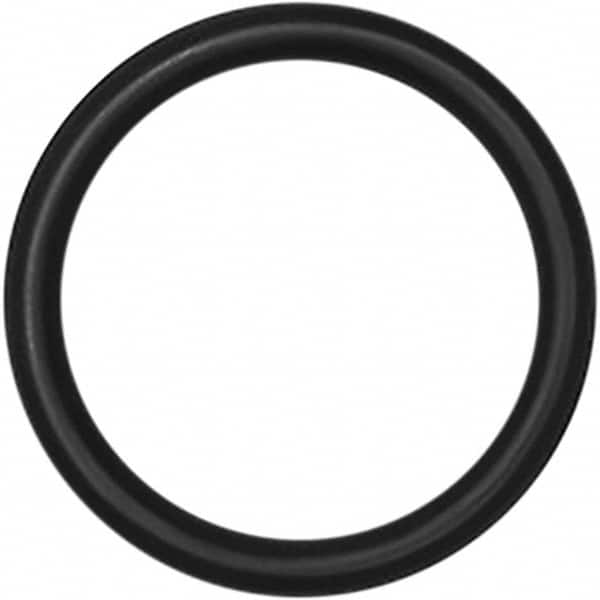

Value Collection - 9/16" OD TFE/P O-Ring - 1/16" Thick, Round Cross Section, Durometer 80
Item #: 96997218
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Round cross-section shapes can be used in both static and dynamic applications. They are used as a mechanical seal or gasket and are seated in a groove and compressed during assembly between two or more parts.
| Product Specifications | |
|---|---|
| Cross Section Shape | Round |
| Material | TFE/P |
| Dash Number | 013 |
| System of Measurement | Inch |
| Durometer | 80 |
| Durometer (Shore A) | 80A |
| Inside Diameter (Inch) | 1/16 |
| Inside Diameter (Decimal Inch) | 0.4260 |
| Outside Diameter (Inch) | 9/16 |
| Outside Diameter (Decimal Inch) | 0.5660 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0700 |
| Maximum Temperature (F) | 450.000 |
