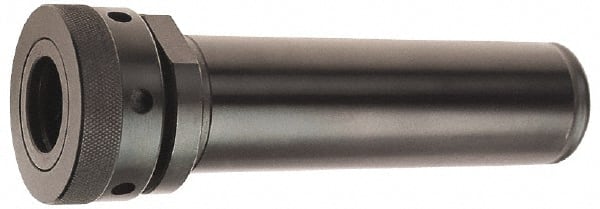

Collet Chuck: 1″ Capacity, Single Angle Collet, Straight Shank 8-7/8″ OAL, 2-7/8″ Projection
Item #: 97034870
Brand: Collis Tool
Model #: 78361
Product Specifications
| Collet System | Single Angle |
| Collet Series | PG100; TG |
| Shank Type | Straight |
| Projection (Inch) | 2-7/8 |
| Through Coolant | No |
| Maximum Collet Capacity (Inch) | 1 |
| Maximum Collet Capacity (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 8-7/8 |
| Actuator Type | Wrench |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Length (Inch) | 6 |
| Shank Length (Decimal Inch) | 6.00 |
| Hex Diameter (Inch) | 2-7/16 |
| Product Service Code | 5136 |
