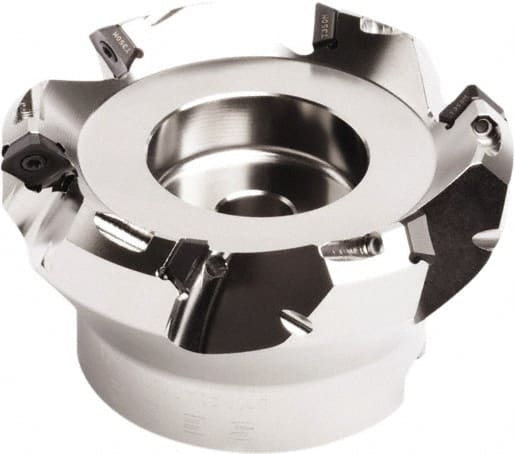

Seco - 73mm Cut Diam, 22mm Arbor Hole, 4.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, SE.. 09T3 Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series QuattroMill
Item #: 97044218
Brand: Seco
Model #: 03950
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 73.00 |
| Cutting Diameter (Decimal Inch) | 2.8740 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | SE.. 09T3 |
| Series | QuattroMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Number of Flutes | 7 |
| Cutting Rake Angle | 10 |
| Rake | Positive |
| Hub Diameter (Decimal Inch) | 1.6535 |
| Hub Diameter (mm) | 42.00 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Maximum Body Diameter (Decimal Inch) | 2.4803 |
| Maximum RPM | 14100 |
| Cutting Direction | Right Hand |
| Pitch | Close |
| Complete Insert Compatibility | SEEX 09T3AFN-E04; SEEX 09T3AFN-M05; SEEX 09T3AFTN-D09; SEEX 09T3AFTN-M08; SEEX 09T3AFTN-ME07; SEMX 09T3AFTN-M08; SEMX 09T3AFTN-ME06 |
