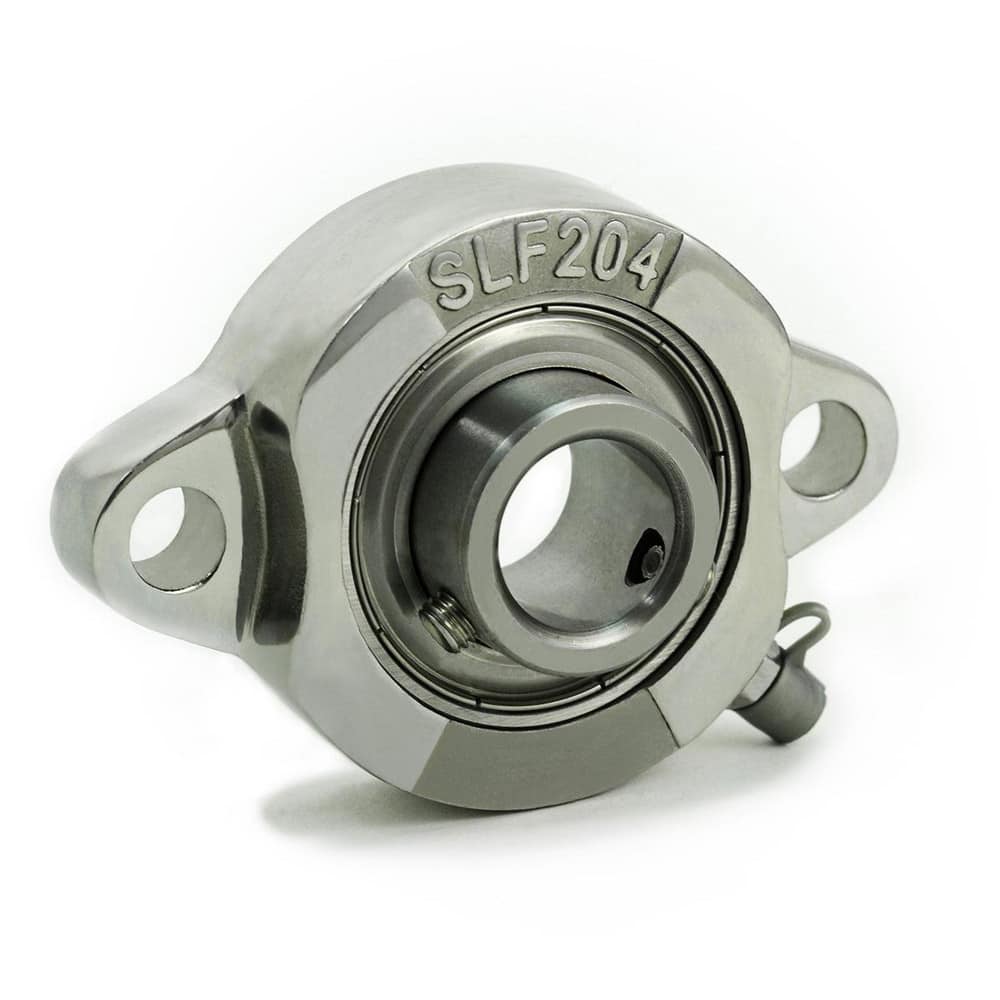

Mounted Bearings & Pillow Blocks; Bearing Insert Type: Narrow Inner Ring; Bolt Hole (Center-to-center): 71.5 mm; Housing Material: Stainless Steel; Lock Type: Set Screw; Static Load Capacity: 1225.00; Number Of Bolts: 2; Maximum RPM: 6490.000; Series: SBL
Item #: 97184980
Brand: Tritan
Model #: SBLFSS204-12GSS
Product Specifications
| Bearing Insert Type | Narrow Inner Ring |
| Bearing Bore Diameter | 0.75 in |
| Bolt Hole (Center-to-center) | 71.5 mm |
| Width (Inch) | 61 |
| Width (Decimal Inch) | 61 |
| Width (mm) | 61 |
| Bolt Size | 0.3125 |
| Housing Material | Stainless Steel |
| Overall Length (Inch) | 90.00 |
| Overall Length (Decimal Inch) | 90.00 |
| Overall Length (mm) | 90.00 |
| Overall Length | 90.00 |
| Overall Width | 61 |
| Overall Height (Decimal Inch) | 29 mm |
| Overall Height (mm) | 29 mm |
| Overall Height (Inch) | 29 mm |
| Overall Height | 29 mm |
| Number Of Bolts | 2 |
| Static Load Capacity | 1225.00 |
| Dynamic Load Capacity | 2440.000 |
| Maximum Rpm | 6490.000 |
| Series | SBLFSS |
| Material | Stainless Steel |
| Insert Material | Stainless Steel |
| Lock Type | Set Screw |
