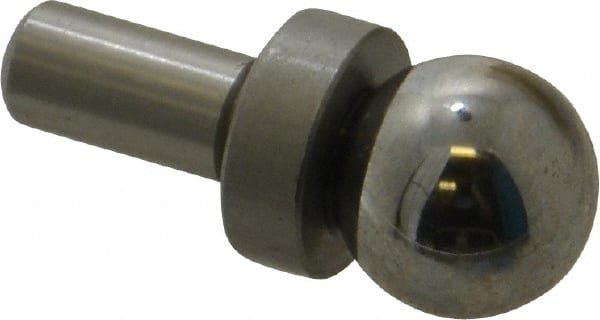

Jergens - 12.7mm Ball Diam, 6.34mm Shank Diam, Stainless Steel Checking Tooling Ball - 0.94" Ball Center to Shank Bottom, 0.4" Ball Center to Shoulder Bottom, with Shoulder, Breakaway
Item #: 97236178
Brand: Jergens
Model #: 29013
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is made of iron and chromium and is resistant to rust and corrosion. It offers high tensile strength and can be used in several environments.
| Product Specifications | |
|---|---|
| Tooling Ball Style | Checking |
| Shoulder | Yes |
| Break-Away | Yes |
| Material | Stainless Steel |
| Ball Diameter (mm) | 12.70 |
| Ball Diameter (Inch) | 1/2 |
| Ball Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (mm) | 6.34 |
| Shank Diameter (Decimal Inch) | 0.2497 |
| Shoulder Diameter (Decimal Inch) | 0.5000 |
| Heat-Treated | Yes |
| Ball Center to Shank Bottom (Decimal Inch) | 0.9400 |
| Ball Center to Shoulder Bottom (Decimal Inch) | 0.4000 |
| Shank Tolerance (Decimal Inch) | -0.0002; +0.0000 |
| Ball Tolerance (Decimal Inch) | ±0.0002 |
| Ball & Shank Concentricity (Decimal Inch) | 0.0002 |
| Ball Center to Shoulder Tolerance (Decimal Inch) | ±0.0002 |
