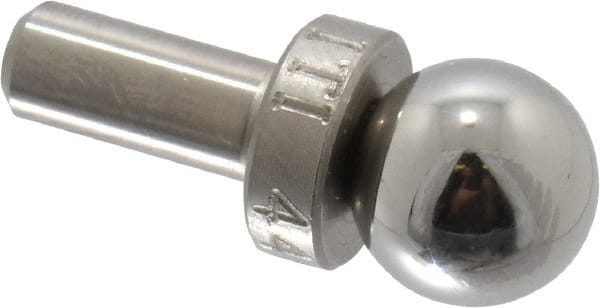

Jergens - 9.53mm Ball Diam, 4.75mm Shank Diam, Stainless Steel Checking Tooling Ball - 3/4" Ball Center to Shank Bottom, 0.3" Ball Center to Shoulder Bottom, with Shoulder, Breakaway
Item #: 97248447
Brand: Jergens
Model #: 29012
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is made of iron and chromium and is resistant to rust and corrosion. It offers high tensile strength and can be used in several environments.
| Product Specifications | |
|---|---|
| Tooling Ball Style | Checking |
| Shoulder | Yes |
| Break-Away | Yes |
| Material | Stainless Steel |
| Ball Diameter (mm) | 9.53 |
| Ball Diameter (Inch) | 3/8 |
| Ball Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (mm) | 4.75 |
| Shank Diameter (Decimal Inch) | 0.1872 |
| Shoulder Diameter (Decimal Inch) | 0.3750 |
| Heat-Treated | Yes |
| Ball Center to Shank Bottom (Inch) | 3/4 |
| Ball Center to Shank Bottom (Decimal Inch) | 0.7500 |
| Ball Center to Shoulder Bottom (Decimal Inch) | 0.3000 |
| Shank Tolerance (Decimal Inch) | -0.0002; +0.0000 |
| Ball Tolerance (Decimal Inch) | ±0.0002 |
| Ball & Shank Concentricity (Decimal Inch) | 0.0002 |
| Ball Center to Shoulder Tolerance (Decimal Inch) | ±0.0002 |
