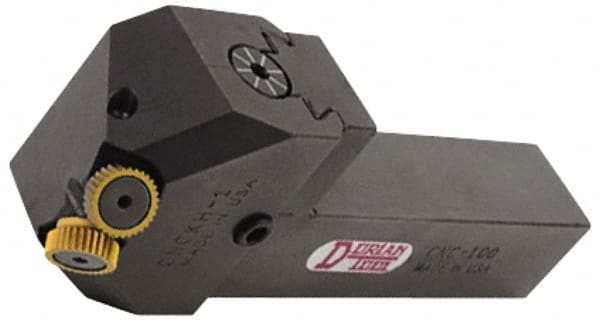

Dorian Tool - 5/16 to 1-1/2 Inch Capacity, 1/2 Inch Wide x 4-3/8 Inch Long Shank, Cut Knurler - 2 Knurls Required, Includes Knurl Wheels, Series SW
Item #: 97265375
Brand: Dorian Tool
Model #: 73310120020
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Capacity (Decimal Inch) | 1.5000 |
| Maximum Capacity (Inch) | 1-1/2 |
| Minimum Capacity (Decimal Inch) | 0.3125 |
| Minimum Capacity (Inch) | 5/16 |
| Cutting Direction | Neutral |
| Shank Width/Diameter (mm) | 32 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Length (Inch) | 4-3/8 |
| Knurl Diameter (Inch) | 1/2 |
| Number of Knurls Required | 2 |
| Knurl Series | SW |
| Includes Knurl Wheels | Yes |
| Shank Shape | Square |
| Modular | Yes |
| Pattern | Diamond |
| Overall Length (Inch) | 4-3/8 |
| Shank Height (Inch) | 1/2 |
