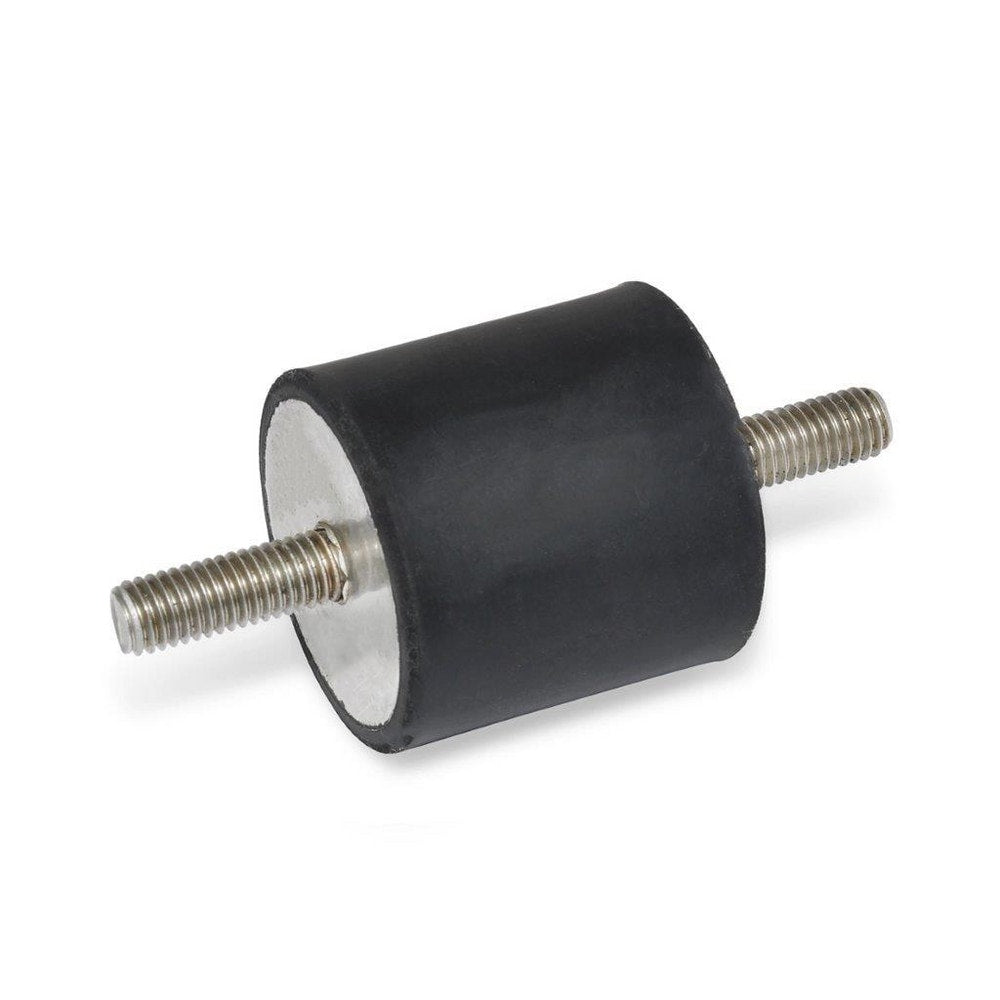

Vibration Isolators; Isolator Type: Stud/Stud; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 3389.50 N; Top Diameter: 62.00; Bottom Diameter: 62; Thread Size: 1/2-13; Overall Width: 62 mm
Item #: 67915033
Brand: J.W. Winco
Model #: 451.1-62-32-1/2-55
Product Specifications
| Isolator Type | Stud/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 3389.50 N |
| Top Diameter | 62.00 |
| Bottom Diameter | 62 |
| Thread Size | 1/2-13 |
| Overall Width | 62 mm |
| Overall Diameter | 62 mm |
| Thread Length (Decimal Inch) | 0.8700 |
| Deflection | 0.3000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.954 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 76 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Stud/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 3389.50 N |
| Top Diameter | 62.00 |
| Bottom Diameter | 62 |
| Thread Size | 1/2-13 |
| Overall Width | 62 mm |
| Overall Diameter | 62 mm |
| Thread Length (Decimal Inch) | 0.8700 |
| Deflection | 0.3000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.954 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 76 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 67915033 |
| Mfr Part # | 451.1-62-32-1/2-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
