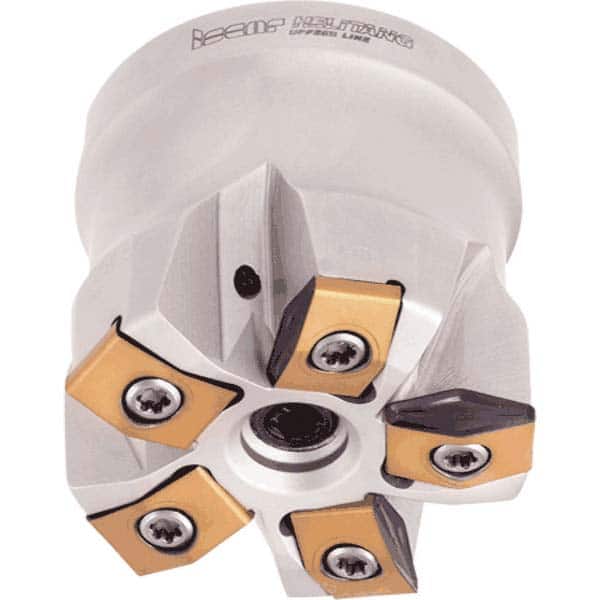

Iscar - Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 1.9680 ; Cutting Diameter (mm): 50.00 ; Maximum Depth of Cut (mm): 1.50 ; Arbor Hole Diameter (mm): 22.00 ; Overall Height (mm): 50.00 ; Series: FFV
Item #: 97791230
Brand: Iscar
Model #: 3107024
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 1.9680 ; Cutting Diameter (mm): 50.00 ; Maximum Depth of Cut (mm): 1.50 ; Arbor Hole Diameter (mm): 22.00 ; Overall Height (mm): 50.00 ; Series: FFV
| Cutting Diameter (Decimal Inch) | 1.9680 |
| Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 1.50 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (mm) | 50.00 |
| Series | FFV |
| Cutter Style | FFV |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | FF VNMT 0706ZN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 7000 |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 1.8890 |
| Maximum Body Diameter (mm) | 48.00 |
| Through Coolant | Yes |
