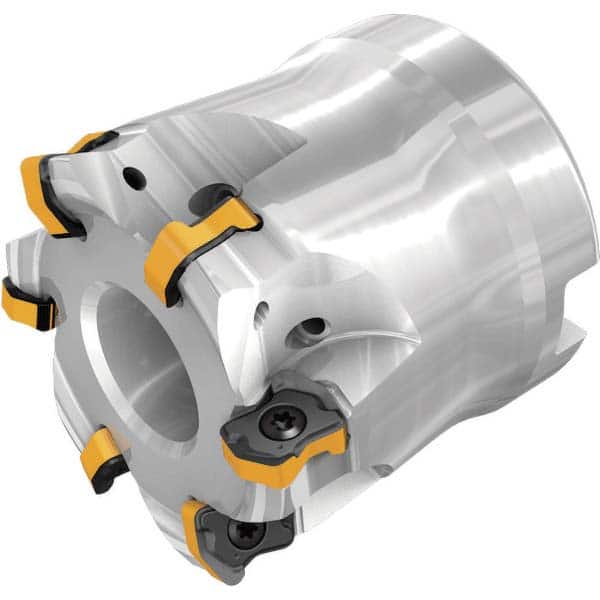

Iscar - Indexable High-Feed Face Mills; Cutting Diameter (mm): 40.00 ; Maximum Depth of Cut (mm): 0.80 ; Arbor Hole Diameter (mm): 16.00 ; Overall Height (mm): 40.00 ; Series: FFX4 ; Cutter Style: FFX4
Item #: 97791255
Brand: Iscar
Model #: 3336687
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (mm): 40.00 ; Maximum Depth of Cut (mm): 0.80 ; Arbor Hole Diameter (mm): 16.00 ; Overall Height (mm): 40.00 ; Series: FFX4 ; Cutter Style: FFX4
| Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 0.80 |
| Arbor Hole Diameter (mm) | 16.00 |
| Overall Height (mm) | 40.00 |
| Series | FFX4 |
| Cutter Style | FFX4 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | FFX4 XNMU 040310 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8000 |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 1.4960 |
| Maximum Body Diameter (mm) | 38.00 |
| Through Coolant | Yes |
