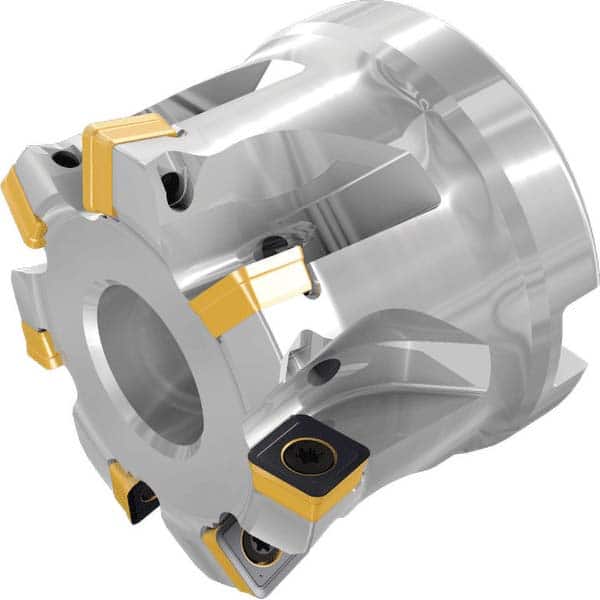

Iscar - Indexable High-Feed Face Mills; Cutting Diameter (mm): 52.00 ; Maximum Depth of Cut (mm): 1.20 ; Arbor Hole Diameter (mm): 22.00 ; Overall Height (mm): 40.00 ; Series: FFQ4 ; Cutter Style: FFQ4
Item #: 97791297
Brand: Iscar
Model #: 3323461
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (mm): 52.00 ; Maximum Depth of Cut (mm): 1.20 ; Arbor Hole Diameter (mm): 22.00 ; Overall Height (mm): 40.00 ; Series: FFQ4 ; Cutter Style: FFQ4
| Cutting Diameter (mm) | 52.00 |
| Maximum Depth of Cut (mm) | 1.20 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (mm) | 40.00 |
| Series | FFQ4 |
| Cutter Style | FFQ4 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | FFQ4 SOMT 0904 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 7000 |
| Number of Flutes | 7 |
| Maximum Body Diameter (Decimal Inch) | 1.8890 |
| Maximum Body Diameter (mm) | 48.00 |
| Through Coolant | Yes |
