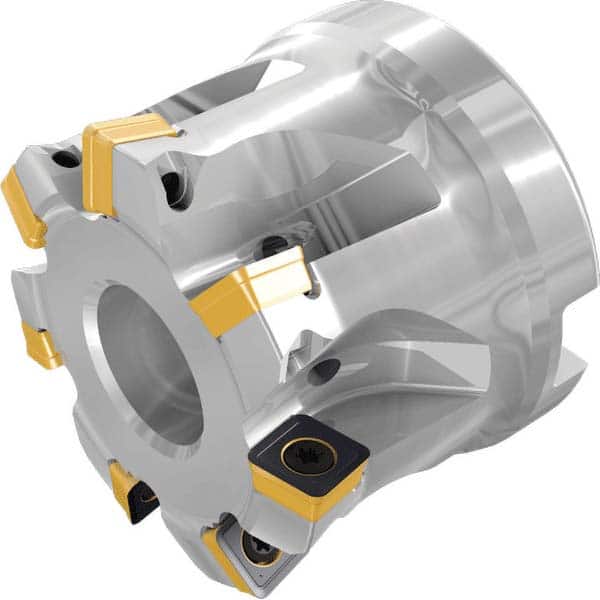

Iscar - Indexable High-Feed Face Mills; Cutting Diameter (mm): 80.00 ; Maximum Depth of Cut (mm): 3.00 ; Arbor Hole Diameter (mm): 27.00 ; Overall Height (mm): 50.00 ; Series: FFQ4 ; Cutter Style: FFQ4
Item #: 97791370
Brand: Iscar
Model #: 3323482
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (mm): 80.00 ; Maximum Depth of Cut (mm): 3.00 ; Arbor Hole Diameter (mm): 27.00 ; Overall Height (mm): 50.00 ; Series: FFQ4 ; Cutter Style: FFQ4
| Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 3.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Overall Height (mm) | 50.00 |
| Series | FFQ4 |
| Cutter Style | FFQ4 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | FFQ4 SOMT 1706 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 5000 |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 2.3620 |
| Maximum Body Diameter (mm) | 60.00 |
| Through Coolant | No |
