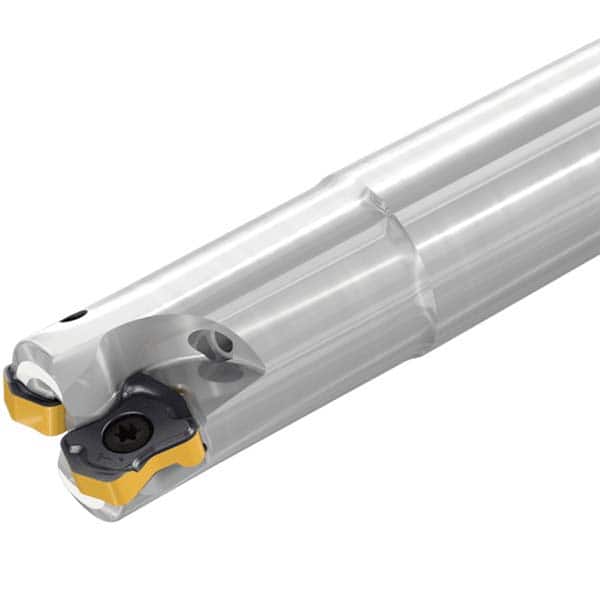

Iscar - Indexable High-Feed End Mills; Cutting Diameter (mm): 17.60 ; Maximum Depth of Cut (mm): 0.80 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.00 ; Number of Cutter Inserts: 4 ; Insert Style: FFX4
Item #: 97791750
Brand: Iscar
Model #: 3336675
Product Specifications
Indexable High-Feed End Mills; Cutting Diameter (mm): 17.60 ; Maximum Depth of Cut (mm): 0.80 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.00 ; Number of Cutter Inserts: 4 ; Insert Style: FFX4
| Cutting Diameter (mm) | 17.60 |
| Maximum Depth of Cut (mm) | 0.80 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Number of Cutter Inserts | 4 |
| Insert Style | FFX4 |
| Toolholder Style | FFX4 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 4 |
| Through Coolant | Coolant Through |
| Maximum Cutting Diameter (Decimal Inch) | 0.9842 |
| Overall Length (mm) | 150.00 |
| Toolholder Material | Steel |
| Head Length (mm) | 60.00 |
