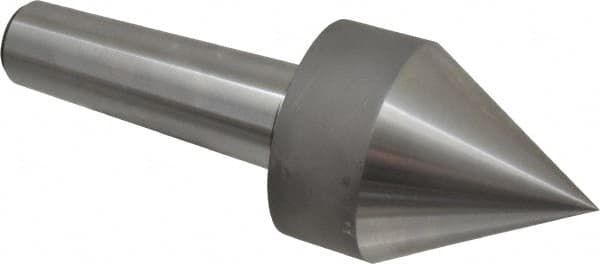

Riten - MT5 Taper Shank, Live Center - 1,500 Max RPM, 3-1/2" Point Diam, 4-15/16" Point Len, 1,500 Lb Max Workpc, 4-29/32" OAL, Pipe Nose Point
Item #: 97880744
Brand: Riten
Model #: 65355
Exact Tooling IR#: 04
Features and Benefits
Pipe nose points are used for for turning pipes, tubes, and parts with extra-large center holes.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 1500.00 |
| Point Style | Pipe Nose |
| Point Diameter (Inch) | 3-1/2 |
| Point Diameter (Decimal Inch) | 3.5000 |
| Point Length (Inch) | 4-15/16 |
| Accuracy (Decimal Inch) | 0.000300 |
| Overall Length (Inch) | 4-29/32 |
| Point to Gauge Line (Inch) | 4-29/32 |
| Gage Line Clearance (Inch) | 7/16 |
| Maximum RPM | 1500 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
