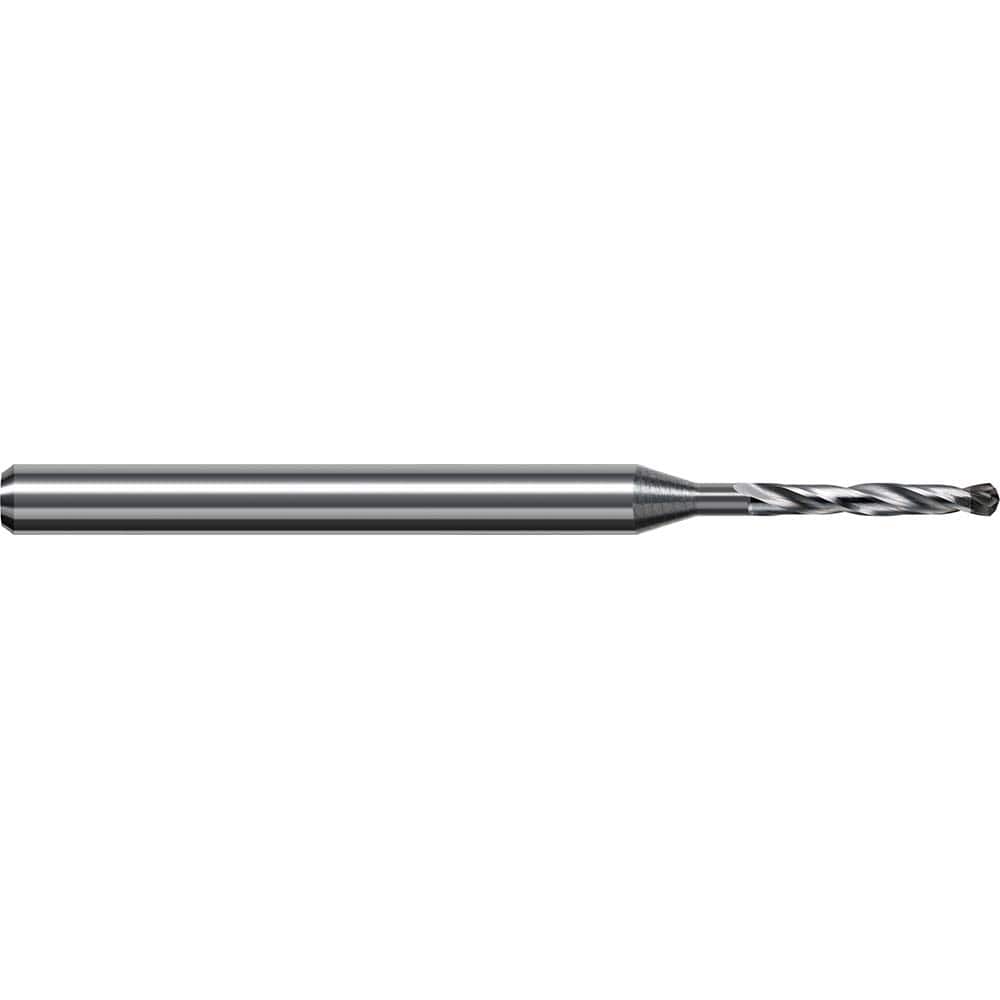

Harvey Tool - 3/32", 130° Point, Brazed Solid Carbide Micro Drill Bit
Item #: 97986194
Brand: Harvey Tool
Model #: BCF0937
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0937 |
| Drill Bit Size (mm) | 2.381 |
| Drill Bit Size (Inch) | 3/32 |
| Shank Diameter (mm) | 4 |
| Drill Point Angle | 130 |
| Drill Bit Material | Brazed Solid Carbide |
| Drill Bit Finish/Coating | Polycrystaline Diamond |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 63 |
| Flute Length (mm) | 16.00 |
| Flute Length (Decimal Inch) | 0.630 |
| Flute Length (Inch) | 0.630 |
| Flute Type | Spiral |
| Point Type | Double Angle |
| Drill Bit Diameter Tolerance (mm) | h6 |
