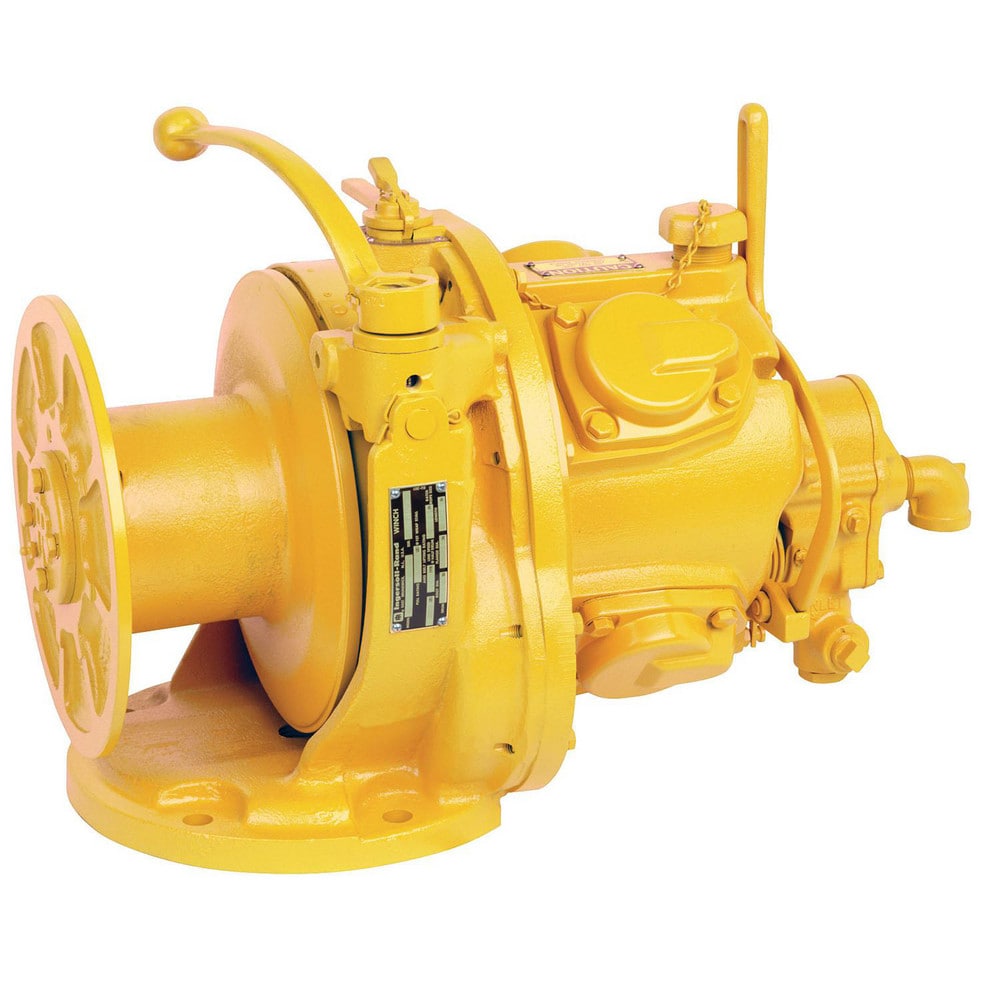

Brand: Ingersoll-Rand / Part #: 01029511
Item #: 99823387
Brand: Ingersoll-Rand
Model #: 01029511
Product Specifications
| Winch Type | Lifting & Pulling |
| Load Rating 1st Layer | 2500 lb |
| Load Rating Mid-drum | 2000 lb |
| Load Rating Full Drum | 1500 lb |
| Drum Capacity 1st Layer | 24 ft |
| Drum Capacity Mid-drum | 141 ft |
| Number Of Speeds | Variable |
| Drum Capacity Full Drum | 253 ft |
| Winch Gear Type | Planetary |
| Line Speed 1st Layer | 16 ft/min |
| Line Speed Full Drum | 27 ft/min |
| Air Consumption | 100.00 |
| Required Pressure | 90 psi |
| Hose Size | 0.75 in |
| Brake Included | Yes |
| Body Material | Steel |
| Cable Diameter | 0.3125 in |
| Cable Length | 339.000 |
| Pulling Direction | Omnidirectional |
| Number Of Mounting Holes | 4.000 |
| Color | Yellow |
| Motor Type | Piston Motor |
| Portable | No |
| Overall Height | 19.4 in |
| Overall Length | 27.60 |
| Overall Width | 16 |
| Standards | ANSI/ASME B30.7 |
| Series | EU Classic Air Winch |
