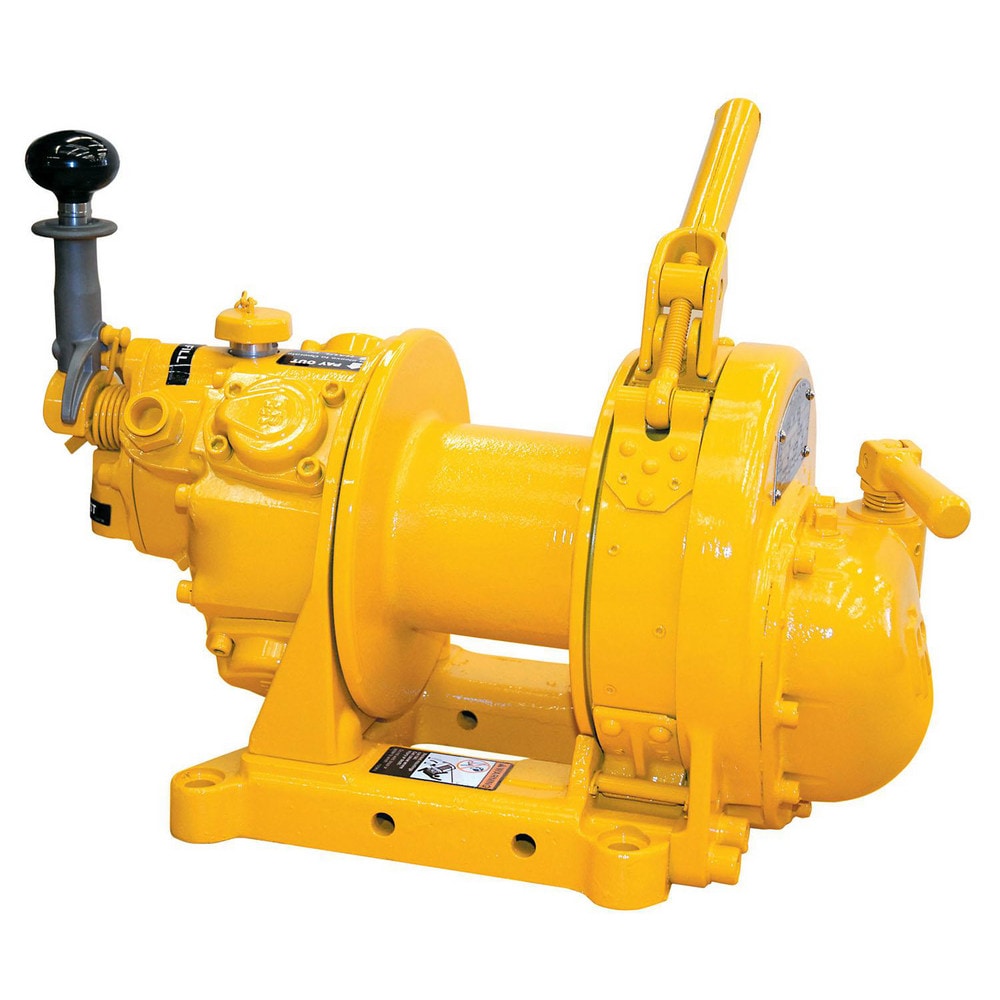

Brand: Ingersoll-Rand / Part #: 01043454
Item #: 99824179
Brand: Ingersoll-Rand
Model #: 01043454
Product Specifications
| Winch Type | Lifting & Pulling |
| Load Rating 1st Layer | 1200 lb |
| Load Rating Mid-drum | 1000 lb |
| Load Rating Full Drum | 800 lb |
| Drum Capacity 1st Layer | 21 ft |
| Drum Capacity Mid-drum | 97 ft |
| Number Of Speeds | Variable |
| Drum Capacity Full Drum | 159 ft |
| Winch Gear Type | Planetary |
| Line Speed 1st Layer | 11 ft/min |
| Line Speed Full Drum | 17 ft/min |
| Air Consumption | 50.00 |
| Required Pressure | 90 psi |
| Hose Size | 0.5 in |
| Brake Included | Yes |
| Body Material | Steel |
| Cable Diameter | 0.25 in |
| Cable Length | 228.000 |
| Pulling Direction | Omnidirectional |
| Number Of Mounting Holes | 4.000 |
| Color | Yellow |
| Motor Type | Piston Motor |
| Portable | Yes |
| Overall Height | 13 in |
| Overall Length | 20.20 |
| Overall Width | 10 |
| Standards | ANSI/ASME B30.7 |
| Series | BU7A Classic Air Winch |
