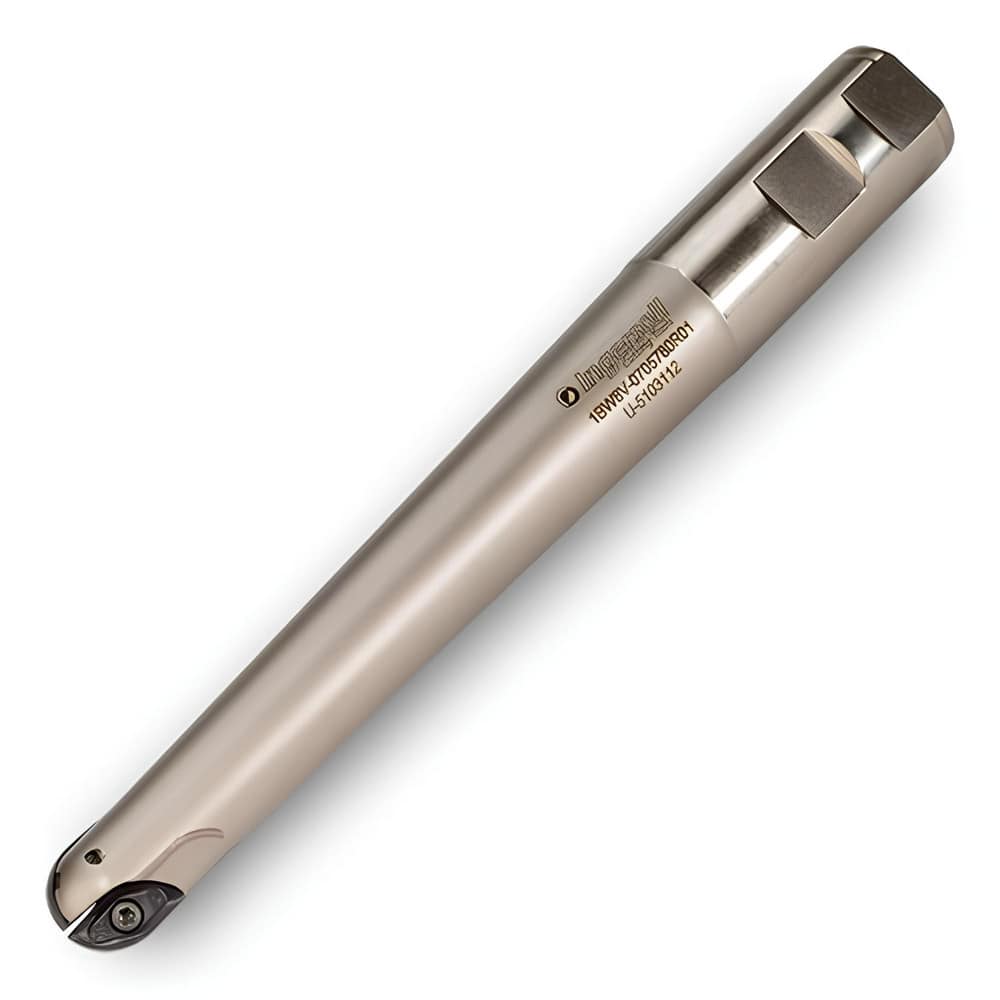

Indexable Ball Nose End Mills; Milling Diameter: 1.0000 in; Maximum Depth Of Cut: 0.5000 in; Shank Diameter: 1.2500 in; Shank Type: Weldon Flat; Compatible Insert Style: NCET; Compatible Insert Size Code: 2504; Toolholder Style: 1BW8W; Series: 1BW8W; Over
Item #: 98100902
Brand: Ingersoll Cutting Tools
Model #: 2929437
Product Specifications
| Milling Diameter | 1.0000 in |
| Maximum Depth Of Cut | 0.5000 in |
| Shank Diameter | 1.2500 in |
| Shank Type | Weldon Flat |
| Compatible Insert Style | NCET |
| Compatible Insert Size Code | 2504 |
| Toolholder Style | 1BW8W |
| Series | 1BW8W |
| Overall Length (mm) | 8.50 |
| Overall Length (Decimal Inch) | 8.50 |
| Overall Length (Inch) | 8.50 |
| Tool Application | Chamfering; Profile Milling; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.1000 in |
