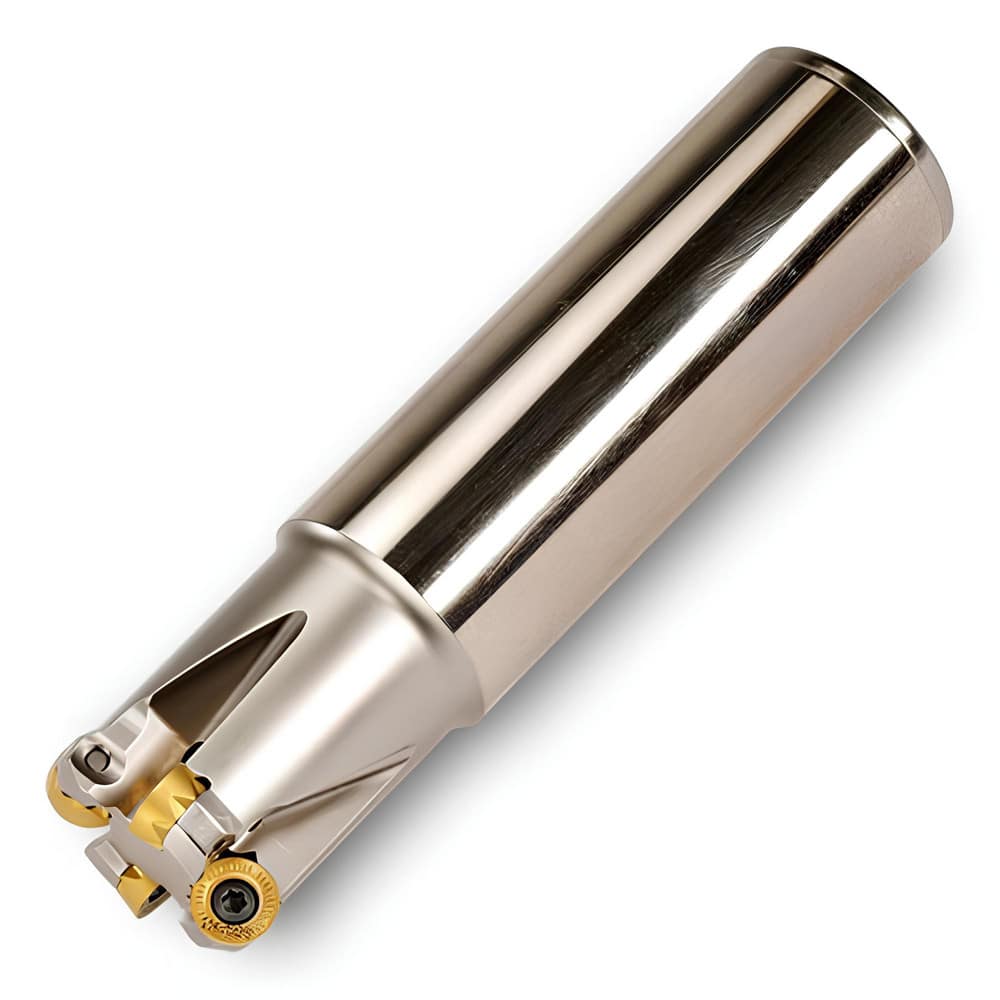

Indexable Copy End Mills; Maximum Depth Of Cut: 6.00 mm; Shank Type: Weldon; Toolholder Style: 15B1B; Shank Diameter (Inch): 1.2598; Shank Diameter (mm): 1.2598; Maximum Ramping Angle: 12 ™; Compatible Insert Style: RJLT; Compatible Insert Size Code: 16.
Item #: 98114457
Brand: Ingersoll Cutting Tools
Model #: 3108186
Product Specifications
| Maximum Depth Of Cut | 6.00 mm |
| Shank Type | Weldon |
| Toolholder Style | 15B1B |
| Shank Diameter (Inch) | 1.2598 |
| Shank Diameter (mm) | 1.2598 |
| Maximum Ramping Angle | 12 ? |
| Compatible Insert Style | RJLT |
| Compatible Insert Size Code | 16.. |
| Number Of Cutter Inserts | 3 |
| Series | 15B1B |
| Overall Length (mm) | 1.50 |
| Overall Length (Decimal Inch) | 1.50 |
| Overall Length (Inch) | 1.50 |
| Flute Type | Straight |
| Tool Application | Facing; Milling; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 20.00 mm |
| Maximum Cutting Diameter (Decimal Inch) | 32.00 mm |
| Minimum Cutting Diameter (Decimal Inch) | 20.00 mm |
