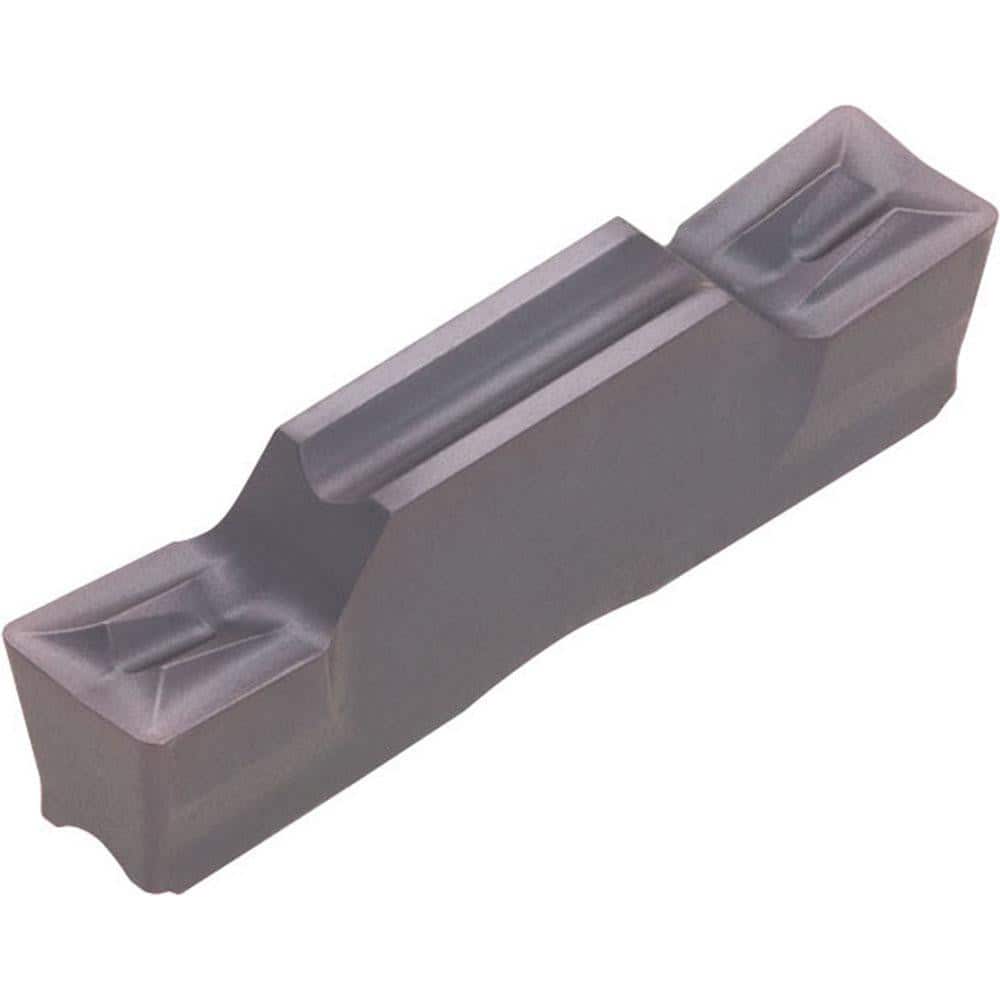

Multi-Directional Turning Insert: AH7025, Solid Carbide
Item #: 98129307
Brand: Tungaloy
Model #: 6776950
Product Specifications
| Insert Style | DTM |
| Insert Size Code | 6 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH7025 |
| Maximum Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (Decimal Inch) | 0.9530 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Insert Hand | Neutral |
| Chipbreaker | TM |
| Series | DTM |
| Coating Process | PVD |
| Full Radius Insert | No |
| Primary Workpiece Material | Superalloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Insert Length (Decimal Inch) | 0.9800 |
| Single Or Double End | Double |
| Coating/Finish | Coated |
