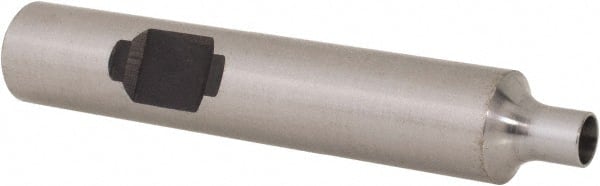

Seco - Minimaster 11.99mm 90° Shank Milling Tip Insert Holder & Shank - 0.224" Neck Diam, 70mm OAL, Steel MM06 Tool Holder
Item #: 98460090
Brand: Seco
Model #: 80695
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Minimaster |
| Shank Type | 90 Degree Shank |
| Shank Diameter (mm) | 11.99 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Neck Diameter (Decimal Inch) | 0.2240 |
| Toolholder Material | Steel |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7560 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Effective Length (mm) | 24.99 |
| Effective Length (Decimal Inch) | 0.9840 |
| Milling Tip Style | MM06 |
| Toolholder Style | MM06 |
