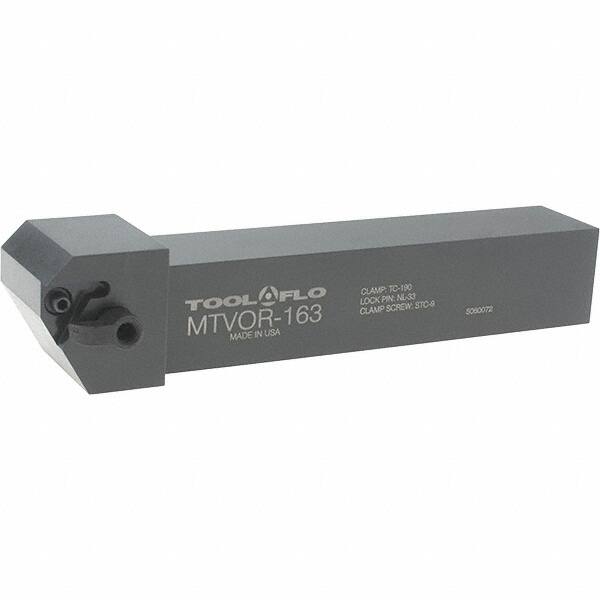

Tool-Flo - External Thread, Right Hand Cut, 1" Shank Width x 1" Shank Height Indexable Threading Toolholder - 6" OAL, T.MA/C 32 Insert Compatibility, MTVO Toolholder, Series On-Edge
Item #: 98533227
Brand: Tool-Flo
Model #: 96001648
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Insert Compatibility | T.MA/C 32 |
| Series | On-Edge |
| Toolholder Style | MTVO |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Pin & Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Head Length (Decimal Inch) | 1.0800 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
