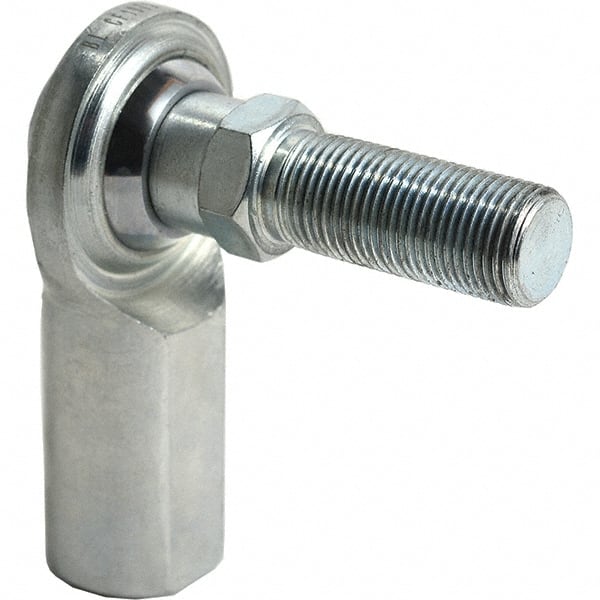

Tritan - 1/4" ID, 3,250 Lb Max Static Cap, Female Spherical Rod End - 1/4-28 UNF RH, 3/8" Shank Diam, 11/16" Shank Length, Zinc Plated Carbon Steel with Low Carbon Steel Raceway
Item #: 98572647
Brand: Tritan
Model #: CF 4S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.2500 |
| Inside Diameter (mm) | 6.4000 |
| Inside Diameter (Inch) | 1/4 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.0000 |
| Maximum Outside Diameter (mm) | 0.00 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Static Load Capacity (Pounds) | 3250.0 |
| Width (Inch) | 3/4 |
| Width (Decimal Inch) | 0.7500 |
| Width (mm) | 19.10 |
| Thread Size | 1/4-28 UNF |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 9.5000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Raceway Material | Low Carbon Steel |
| Shank Length (Decimal Inch) | 0.6870 |
| Shank Length (mm) | 17.400 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 1.690 |
| Overall Length (mm) | 42.9000 |
| Overall Length (Decimal Inch) | 1.6900 |
