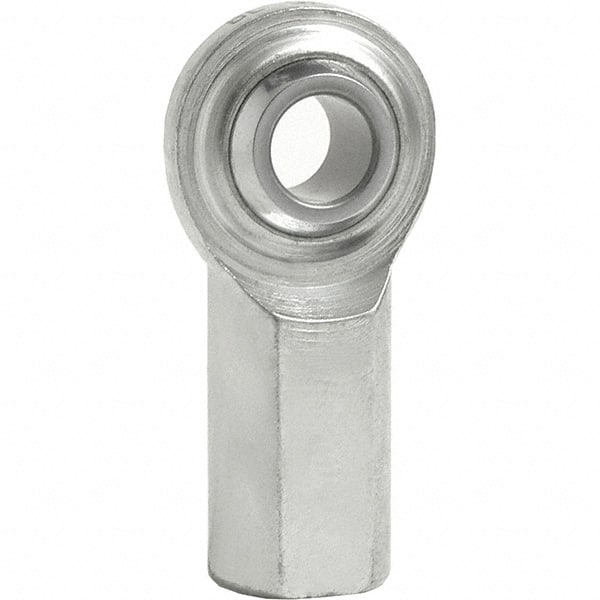

Tritan - 1/2" ID, 9,100 Lb Max Static Cap, Female Spherical Rod End - 1/2-20 UNF RH, 5/8" Shank Diam, 1-1/16" Shank Length, Zinc Plated Carbon Steel with Low Carbon Steel Raceway
Item #: 98572902
Brand: Tritan
Model #: CF 8
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.5000 |
| Inside Diameter (mm) | 12.7000 |
| Inside Diameter (Inch) | 1/2 |
| Style | Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.0000 |
| Maximum Outside Diameter (mm) | 0.00 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Outside Diameter (Inch) | 0 |
| Maximum Static Load Capacity (Pounds) | 9100.0 |
| Width (Inch) | 1.312 |
| Width (Decimal Inch) | 1.3120 |
| Width (mm) | 33.30 |
| Thread Size | 1/2-20 UNF |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 15.9000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Raceway Material | Low Carbon Steel |
| Shank Length (Decimal Inch) | 1.0620 |
| Shank Length (mm) | 27.000 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 2.780 |
| Overall Length (mm) | 70.6000 |
| Overall Length (Decimal Inch) | 2.7800 |
