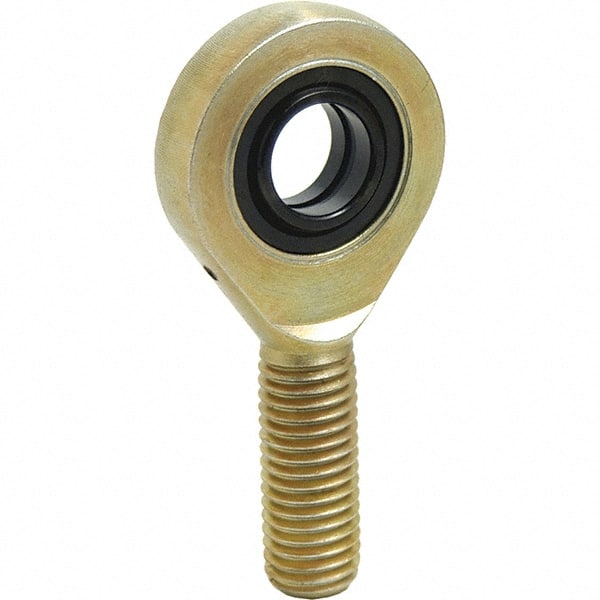

Tritan - 0.5906" ID, 2.4803" Max OD, 7,194 Lb Max Static Cap, Male Spherical Rod End - M14 LH, 0.4724" Shank Diam, 1.3386" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 98573199
Brand: Tritan
Model #: SAL 15ES
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.5906 |
| Inside Diameter (mm) | 15.0000 |
| Inside Diameter (Inch) | 0.591 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 2.4803 |
| Maximum Outside Diameter (mm) | 63.00 |
| Maximum Outside Diameter (Inch) | 2 |
| Maximum Outside Diameter (Inch) | 2.4803 |
| Maximum Static Load Capacity (Pounds) | 7194.0 |
| Width (Inch) | 1.570 |
| Width (Decimal Inch) | 1.5700 |
| Width (mm) | 39.90 |
| Thread Size | M14 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 12.0000 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (Inch) | 0.472 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 1.3386 |
| Shank Length (mm) | 34.000 |
| Thread Direction | Left Hand |
| Overall Length (Inch) | 4.060 |
| Overall Length (mm) | 103.1000 |
| Overall Length (Decimal Inch) | 4.0600 |
