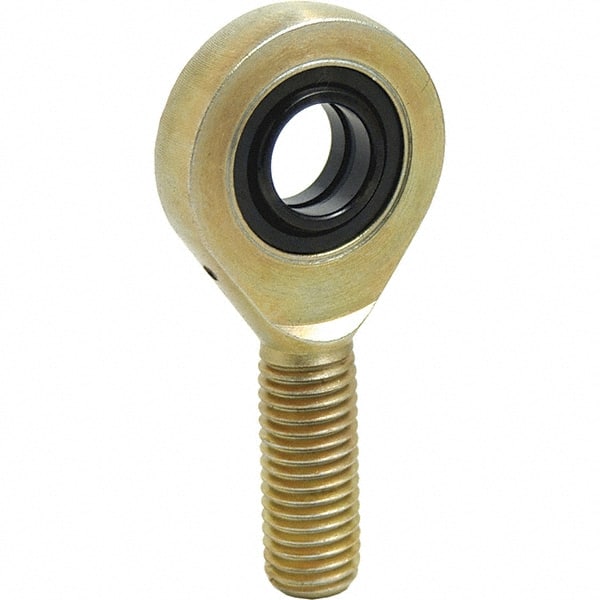

Tritan - 0.2362" ID, 1-5/12" Max OD, 1,236 Lb Max Static Cap, Male Spherical Rod End - M6 RH, 0.2362" Shank Diam, 0.6299" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 98573223
Brand: Tritan
Model #: SA 6E
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.2362 |
| Inside Diameter (mm) | 6.0000 |
| Inside Diameter (Inch) | 0.236 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 1.4173 |
| Maximum Outside Diameter (mm) | 36.00 |
| Maximum Outside Diameter (Inch) | 1 |
| Maximum Outside Diameter (Inch) | 1.4173 |
| Maximum Static Load Capacity (Pounds) | 1236.0 |
| Width (Inch) | 0.940 |
| Width (Decimal Inch) | 0.9400 |
| Width (mm) | 23.90 |
| Thread Size | M6 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (Inch) | 0.236 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 0.6299 |
| Shank Length (mm) | 16.000 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 2.240 |
| Overall Length (mm) | 56.9000 |
| Overall Length (Decimal Inch) | 2.2400 |
