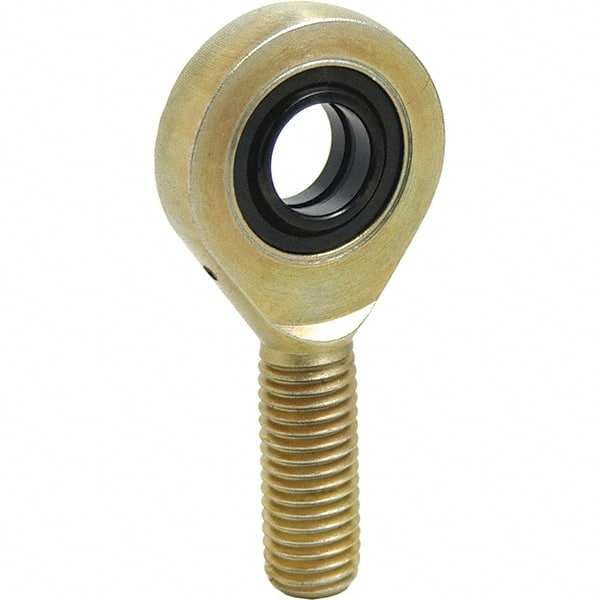

Tritan - 3.1496" ID, 10.6299" Max OD, 168,607 Lb Max Static Cap, Male Spherical Rod End - M64x4 LH, 2.1654" Shank Diam, 5.5118" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 98573264
Brand: Tritan
Model #: SALA 80ES 2RS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 3.1496 |
| Inside Diameter (mm) | 80.0000 |
| Inside Diameter (Inch) | 3.150 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 10.6299 |
| Maximum Outside Diameter (mm) | 270.00 |
| Maximum Outside Diameter (Inch) | 11 |
| Maximum Outside Diameter (Inch) | 10.6299 |
| Maximum Static Load Capacity (Pounds) | 168607.0 |
| Width (Inch) | 7.090 |
| Width (Decimal Inch) | 7.0900 |
| Width (mm) | 180.10 |
| Thread Size | M64x4 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 55.0000 |
| Shank Diameter (Decimal Inch) | 2.1654 |
| Shank Diameter (Inch) | 2.165 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 5.5118 |
| Shank Length (mm) | 140.000 |
| Thread Direction | Left Hand |
| Overall Length (Inch) | 17.720 |
| Overall Length (mm) | 450.1000 |
| Overall Length (Decimal Inch) | 17.7200 |
