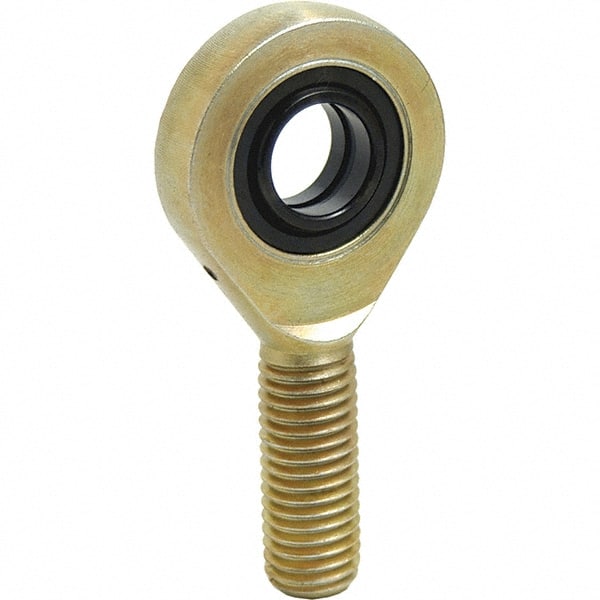

Tritan - 1.9685" ID, 7.2835" Max OD, 65,195 Lb Max Static Cap, Male Spherical Rod End - M45x3 RH, 1.378" Shank Diam, 4.0945" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 98573272
Brand: Tritan
Model #: SAA 50ES 2RS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 1.9685 |
| Inside Diameter (mm) | 50.0000 |
| Inside Diameter (Inch) | 1.969 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 7.2835 |
| Maximum Outside Diameter (mm) | 185.00 |
| Maximum Outside Diameter (Inch) | 7 |
| Maximum Outside Diameter (Inch) | 7.2835 |
| Maximum Static Load Capacity (Pounds) | 65195.0 |
| Width (Inch) | 4.410 |
| Width (Decimal Inch) | 4.4100 |
| Width (mm) | 112.00 |
| Thread Size | M45x3 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 35.0000 |
| Shank Diameter (Decimal Inch) | 1.3780 |
| Shank Diameter (Inch) | 1.378 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 4.0945 |
| Shank Length (mm) | 104.000 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 11.690 |
| Overall Length (mm) | 296.9000 |
| Overall Length (Decimal Inch) | 11.6900 |
