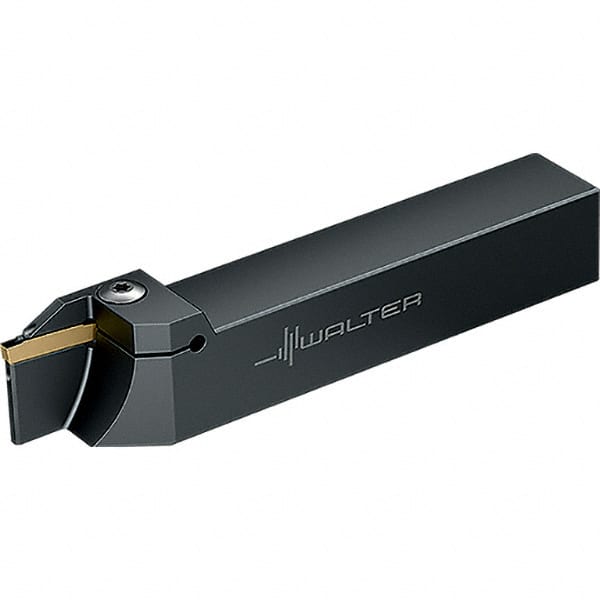

Indexable Grooving/Cutoff Toolholder
Item #: 98580152
Brand: Walter
Model #: 7463267
Product Specifications
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Maximum Depth of Cut (mm) | 32.00 |
| Toolholder Style | G1011 |
| Insert Holding Method | Screw; Clamp |
| Compatible Insert Size Code | GX24 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 95.00 |
| Shank Length (Decimal Inch) | 3.7401 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | G1011 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Cutting Tool Application | Grooving; Cut-Off |
| Head Length (Decimal Inch) | 2.1654 |
| Head Length (mm) | 55.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
