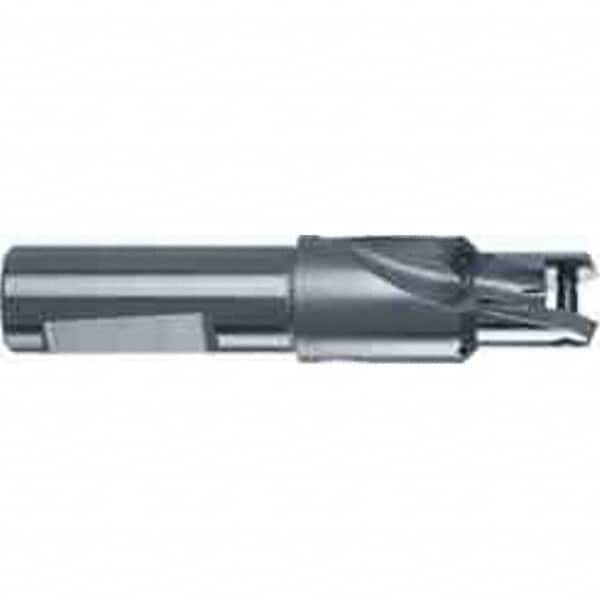

Guhring - 42mm Max Diam, 1xD, 32mm Shank Diam, 156.3mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 32.000 HT800 Toolholder, Series 4105
Item #: 98841125
Brand: Guhring
Model #: 9041050320000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4105 |
| Maximum Drill Diameter (mm) | 42.00 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (mm) | 89.30 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 420 |
| Toolholder Style | 32.000 HT800 |
| Shank Type | Whistle Notch |
| Overall Length (mm) | 156.30 |
| Shank Length (mm) | 67.00 |
