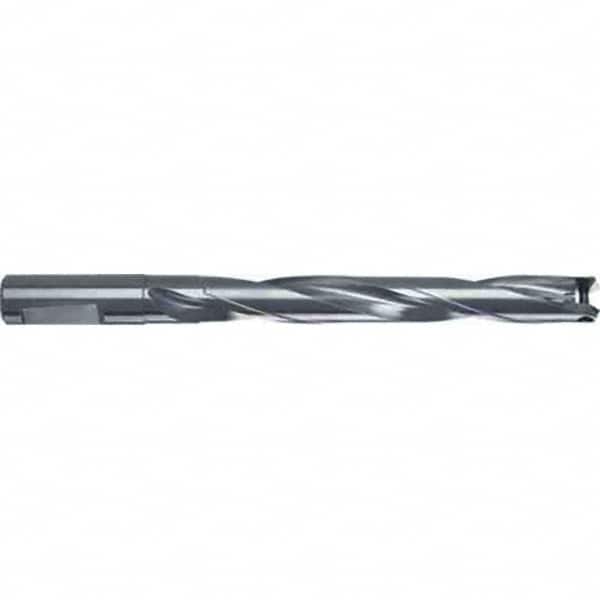

Guhring - 31.5mm Max Diam, 7xD, 32mm Shank Diam, 344mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 31.500 HT800 Toolholder, Series 4109
Item #: 98841307
Brand: Guhring
Model #: 9041090315000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4109 |
| Maximum Drill Diameter (mm) | 31.50 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 229.40 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 315 |
| Toolholder Style | 31.500 HT800 |
| Shank Type | Whistle Notch |
| Overall Length (mm) | 344.00 |
| Shank Length (mm) | 114.60 |
