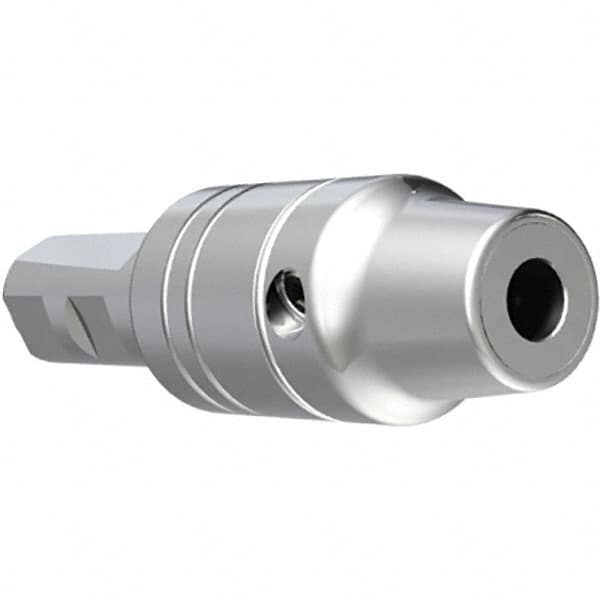

Guhring - 25mm Metric Straight Shank Diam Tension & Compression Tapping Chuck - M8 to M20 Tap Capacity, 94mm Projection
Item #: 98843667
Brand: Guhring
Model #: 9045250200250
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Modular Connection Size | Metric |
| Minimum Tap Capacity (mm) | M8 |
| Maximum Tap Capacity (mm) | M20 |
| Projection (mm) | 94.00 |
| Minimum Collet Capacity (mm) | 6.00 |
| Maximum Collet Capacity (mm) | 16.00 |
| Collet Series | 4525 |
| Holder Series | Guhro Sync |
| Nose Diameter (mm) | 40.00 |
| Overall Length (Inch) | 94 |
